Electromotive outdoor drive type SUP-A for traction - hard wired

Electromotive outdoor drive type SUP-A for traction - hard wired

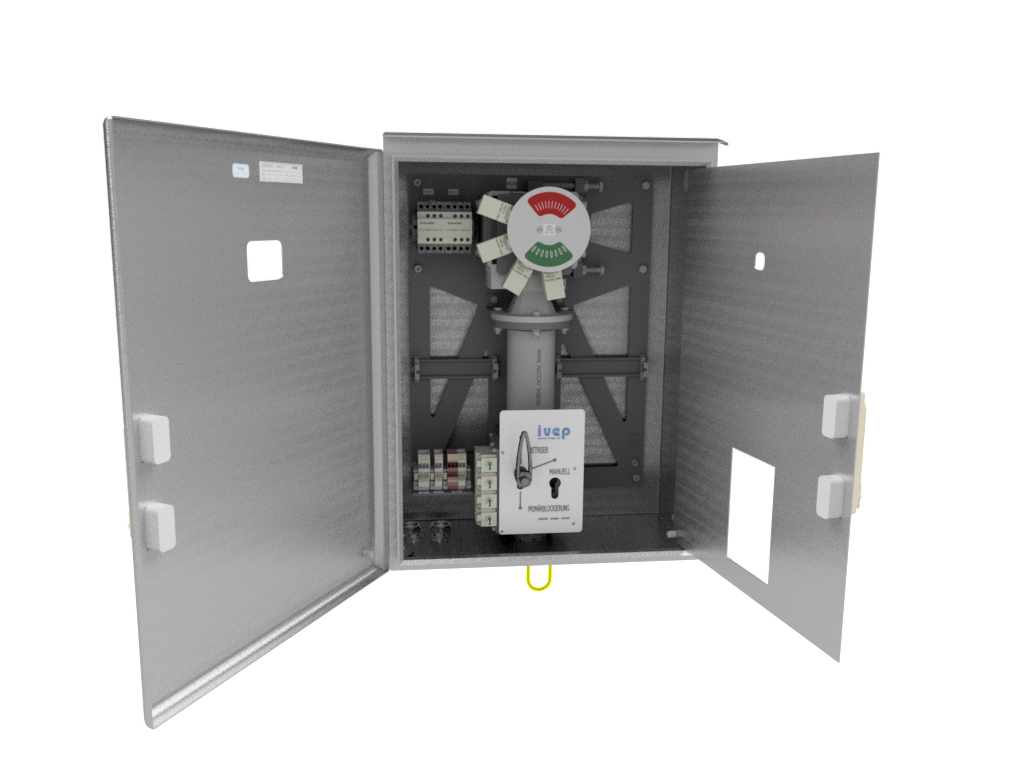

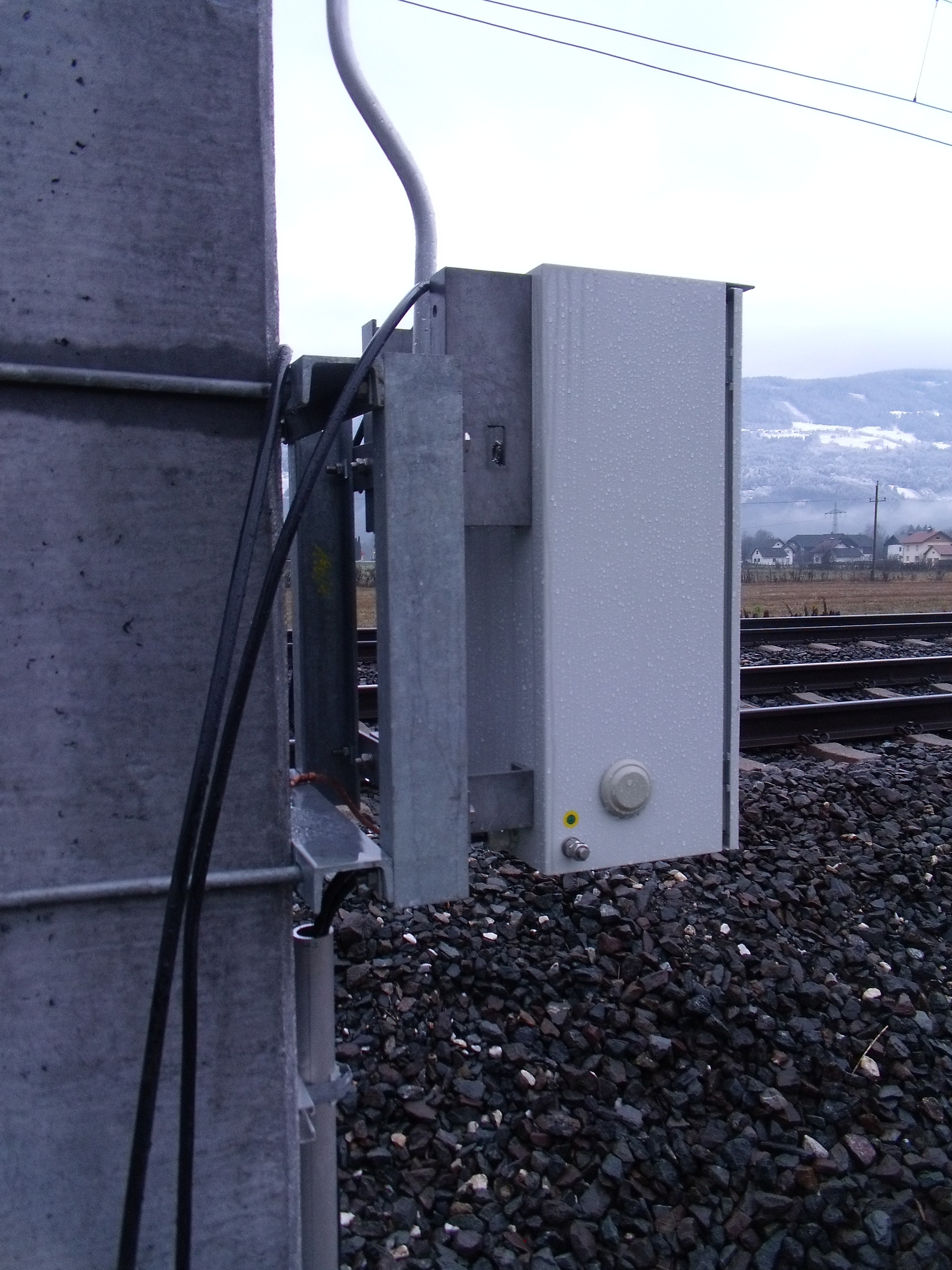

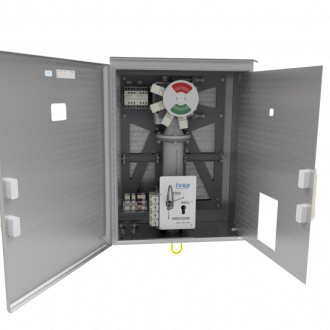

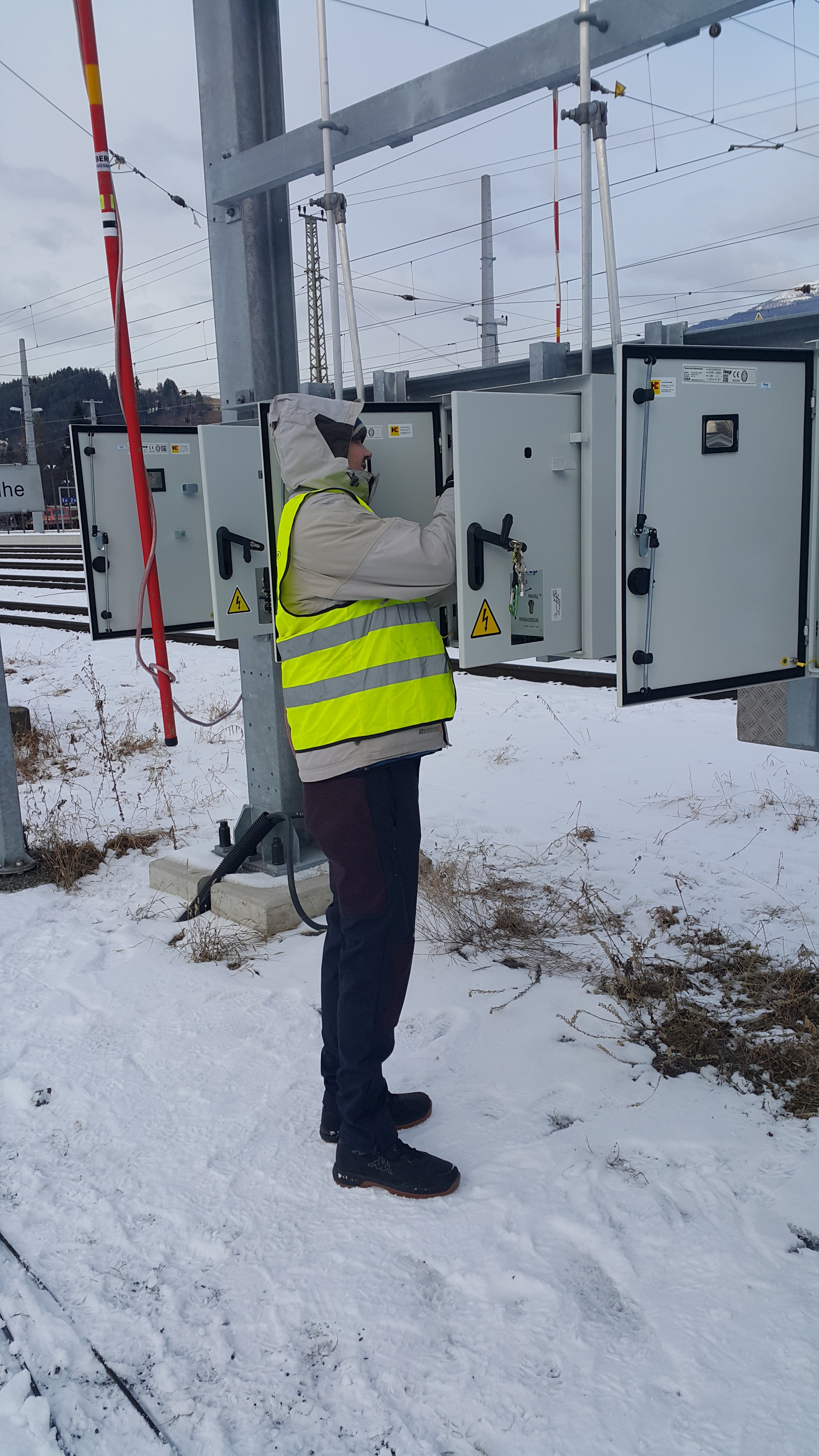

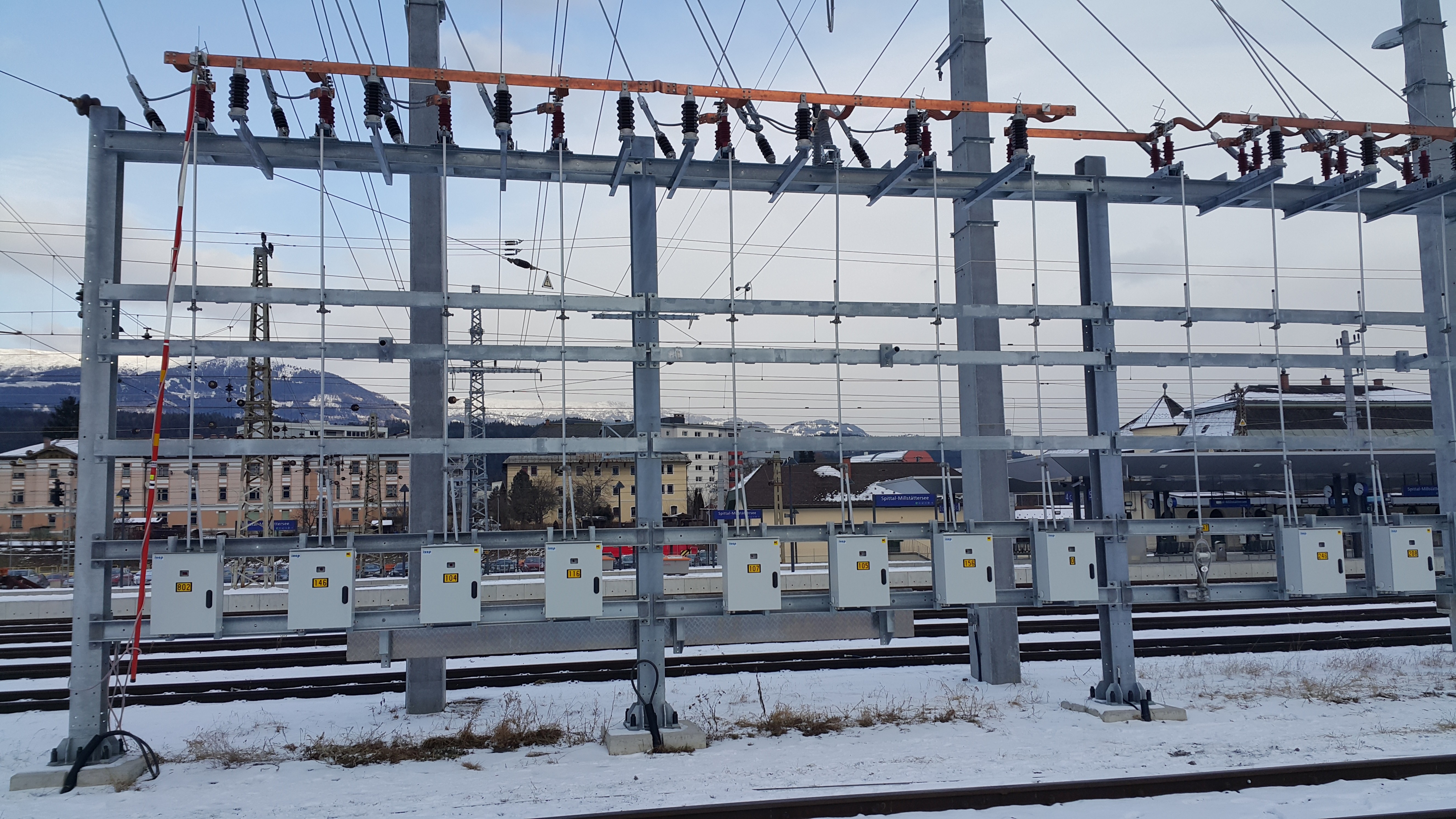

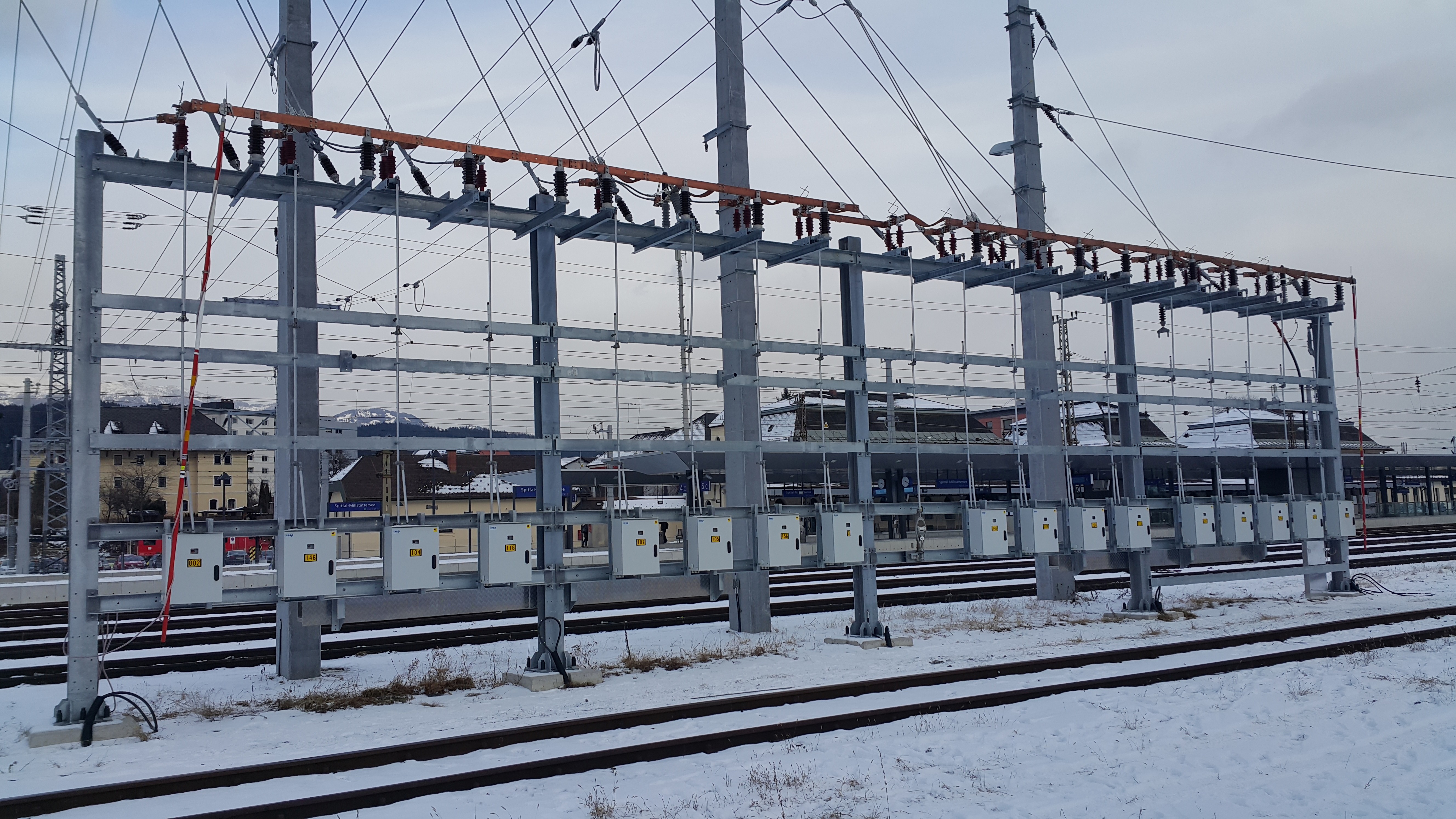

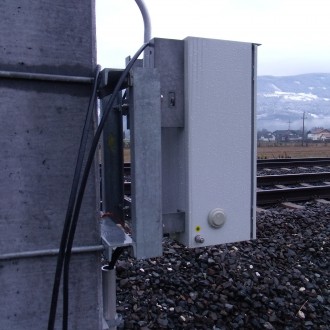

The SUP-A electromotor drive is intended for use in independent control of traction outdoor switching devices, operated by power, in particular the MV disconnectors, switch disconnectors and earthing switches. It can be used for local, remote and emergency control. The drive output torque achieves a level that provides for reliable control of the switching devices even in heavy-duty conditions. Drive type SUP-A is intended for direct connection via matalic cables  and it's tested for 50.000 CO.

Online inquiry3D model360 Model
Close

Contact form

Technical information

Rated control voltage: 230V AC
Mechanical endurance: 50000 CO
Lifetime (years): 40
Material of the cabinet: stainless steel, covered by paint RAL upon request
Output of the shaf, position: upon request
Emergency control: YES
Uplift: adjustable 80 - 180mm, possible to change
Output momentum torgue: 200 - 2000 Nm
Output angle: upon request
Signaling positions:Limit switches per position, placed direct on main device shaft, Auxiliary cam-switch (high switch capacity)

Accessories

Metal hand lever KMT
Blocking magnet BLM
Manual emergency manipulation
Angle gearbox
