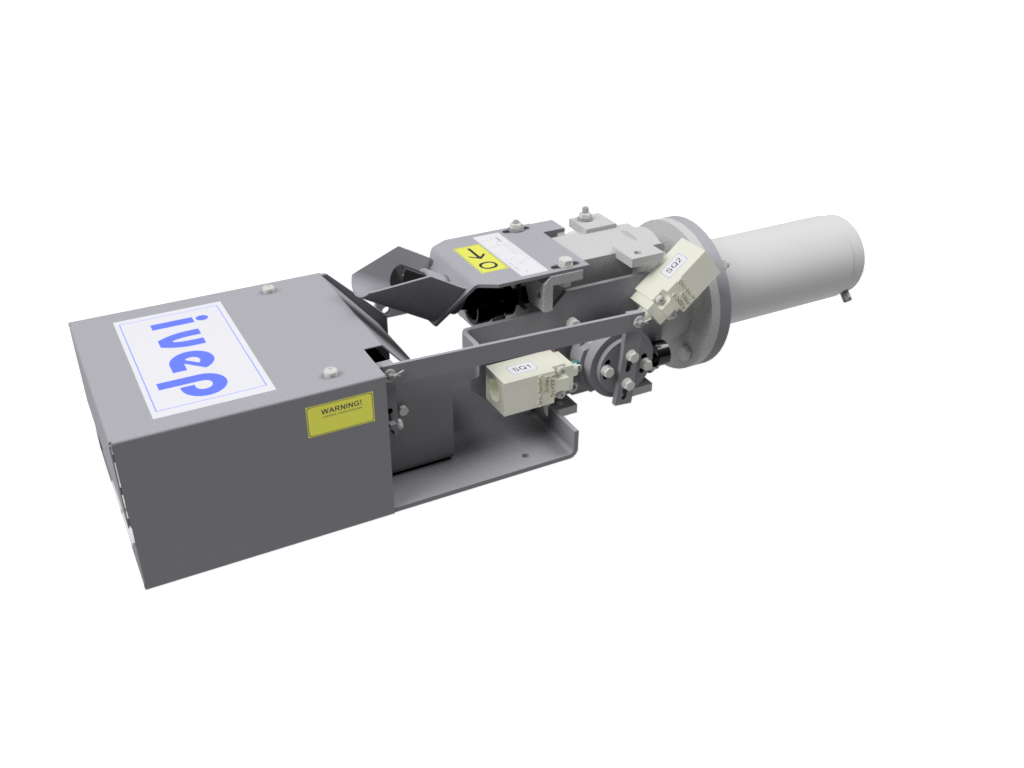

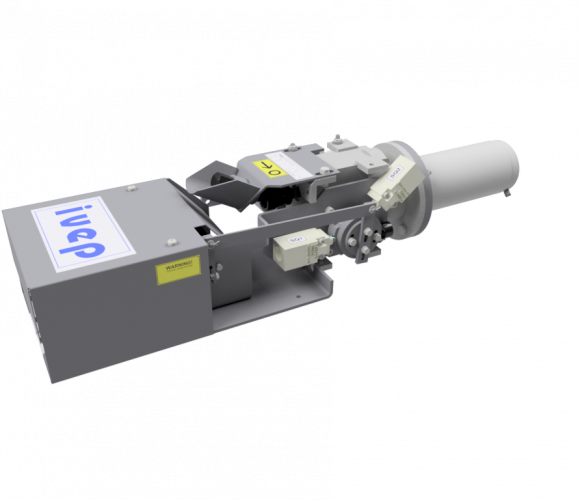

Electromotive indoor drive type SP-CB, HF

Electromotive indoor drive type SP-CB, HF

Technical information

Rated control voltage: 12V DC, 24V DC, 48V DC, 60V DC, 110V DC, 125V DC, 220V DC, 230V AC, 400V AC
Mechanical endurance: 10000, 50000 CO
Lifetime (years): 40
Emergency control: YES
Angle of rotation: adjustable 60 - 180°, possible to change
Output momentum torgue: 200 - 2000 Nm
Signaling positions:Limit switches per position, placed direct on main device shaft, Auxiliary cam-switch (high switch capacity)
