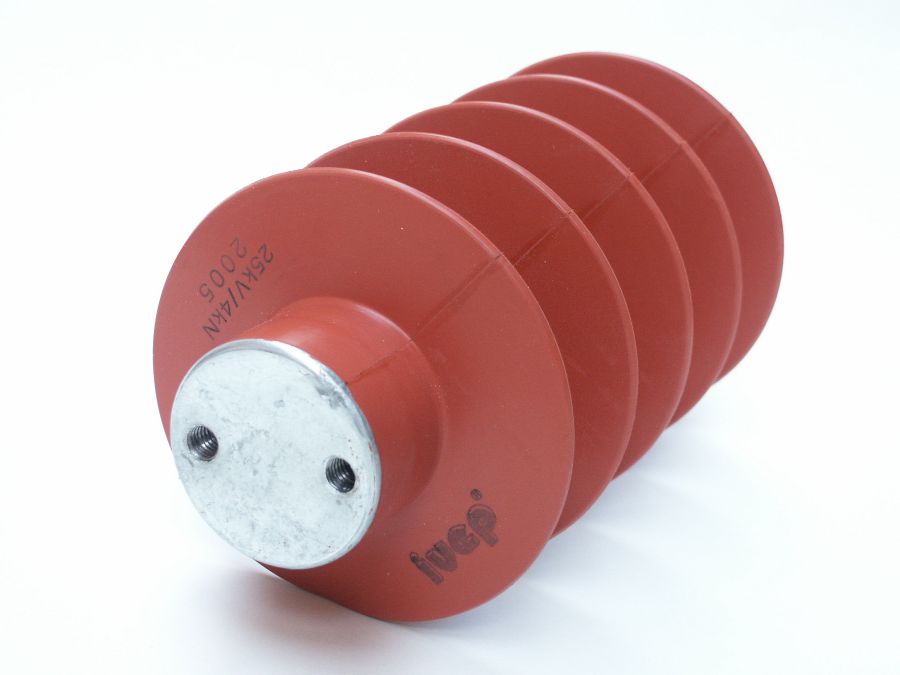

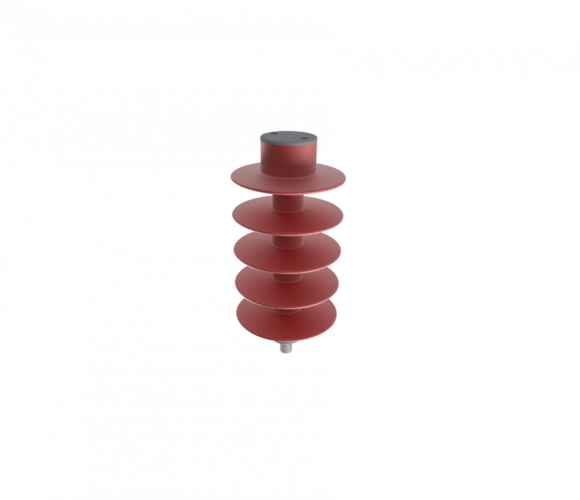

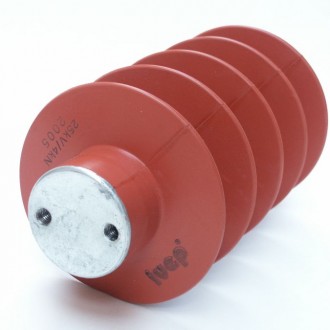

Post composite insulator 25kV - FAVEO CBSZ2-24-00

Post composite insulator 25kV - FAVEO CBSZ2-24-00

Insulator for outdoor use in AC switchgear with voltage up to 25 kV. Standard creepage distance 25mm/kV for MV grids 25kV.

Online inquiry3D model360 Model
Close

Contact form

Technical information

Type: FAVEO CBSZ2-24-00
Rated current: 25 kV
Insulation material: silicone rubber
Color of insulator (upon request): red/grey
Creepage distance: 645 mm
Nominal tensile strength (STL): 25 kN
Nominal bending strength (SCL): 4 kN
Rated lightning impulse withstand voltage 1,2/50 μs : 125 kV
Rated 1 minute power-frequency withstand voltage in dry and wet conditions: 50 kV
