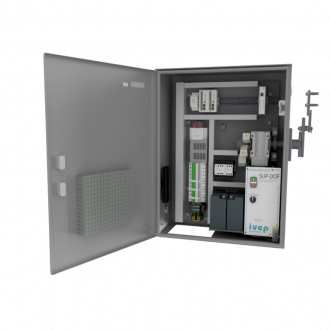

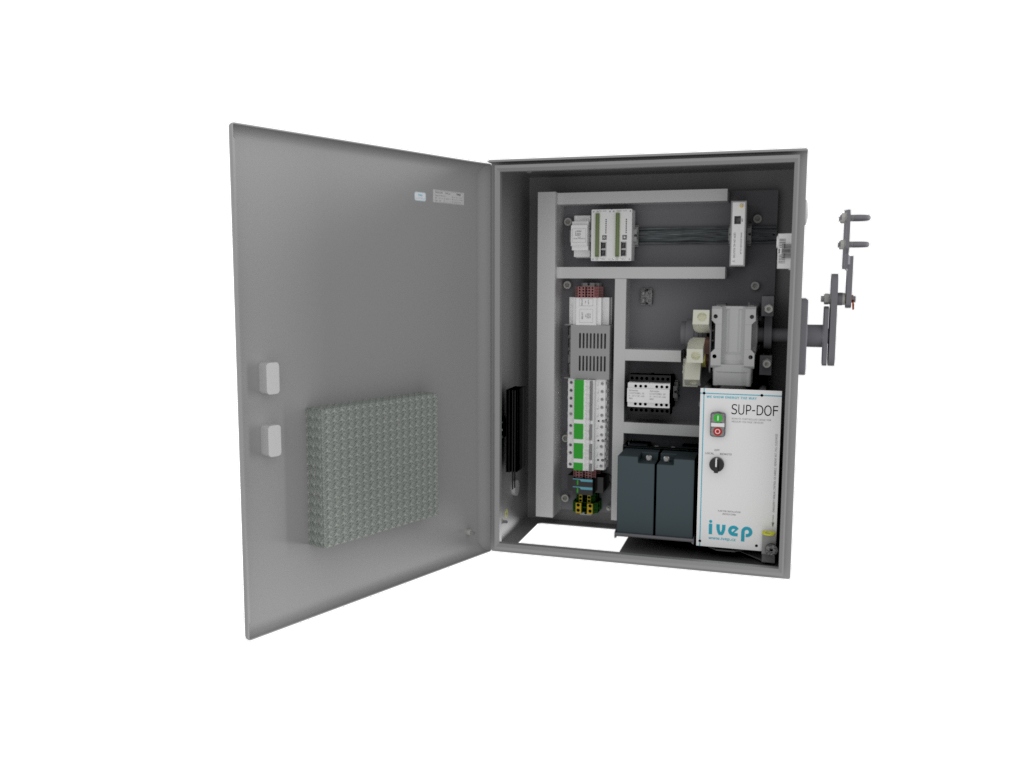

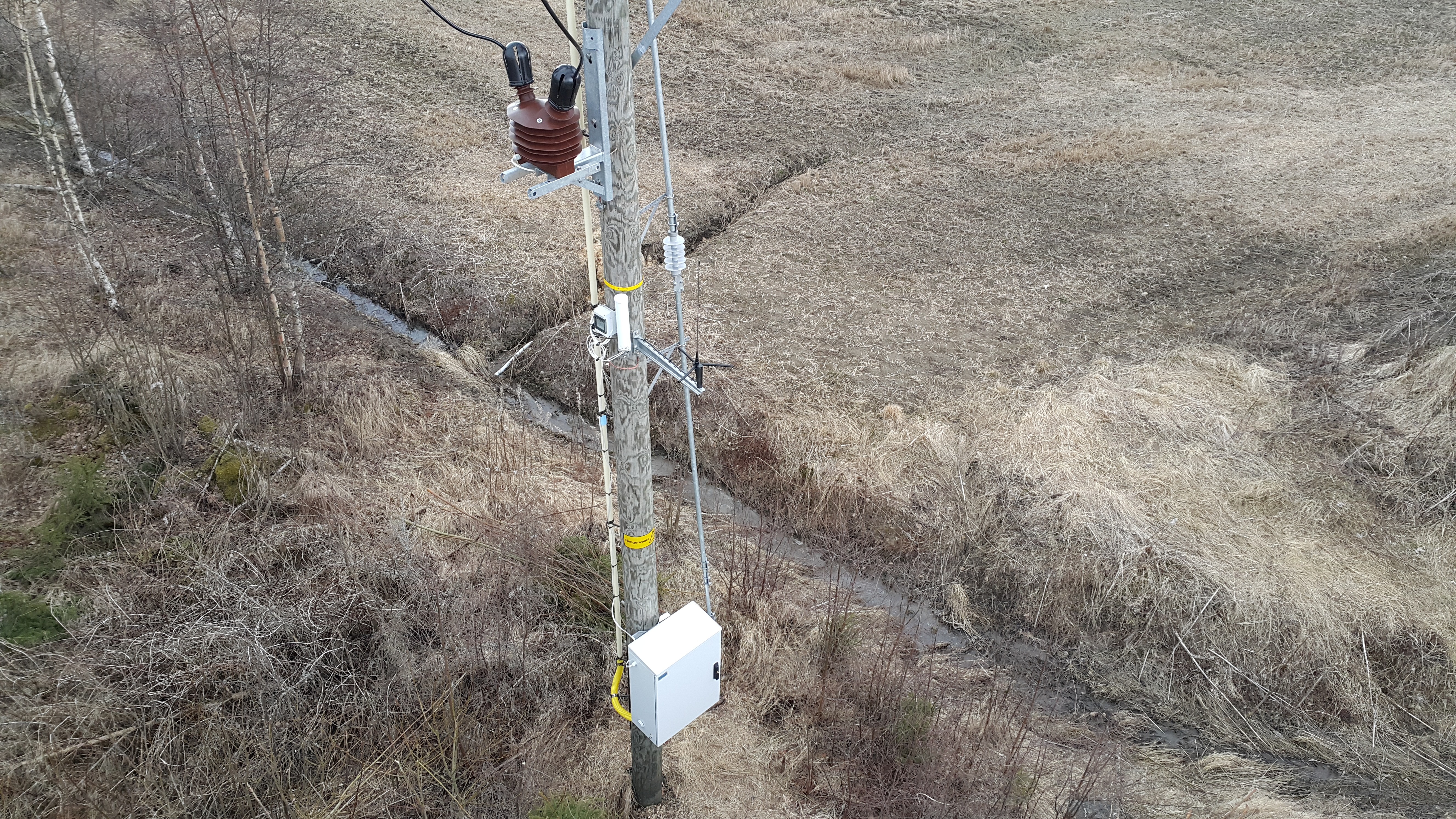

Outdoor electric drive type SUP-DOF - remote operation GPRS/LTE/Radio, F.L.I.R. (FAULT LOCATION ISOLATION RESTORATION) IVEP SYSTEM, IND 4.0 ready

Outdoor electric drive type SUP-DOF - remote operation GPRS/LTE/Radio, F.L.I.R. (FAULT LOCATION ISOLATION RESTORATION) IVEP SYSTEM, IND 4.0 ready

The SUP-DOF drive is a top product - this device allows you to measure, monitor, record direct oscillograms and states of the grid. The grid maintenance is possible to predict, drive and controlled devices also. All data are recorded and processed. Everything is built on a modular platform and it is here fully configurable possibilites.

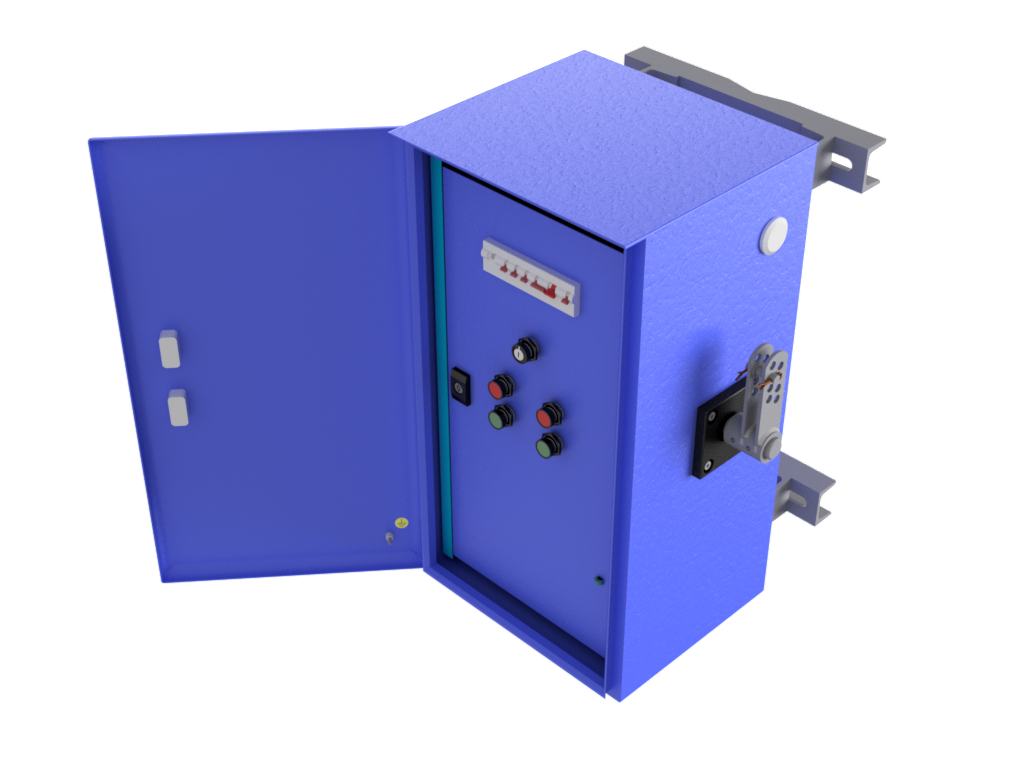

The SUP-DOF electromagnetic drive is intended for use in independent control of outdoor switching devices, operated by power, in particular the MV, HV disconnectors, switch disconnectors and earthing switches. It can be used for local, remote and emergency control. The drive output torque achieves a level that provides for reliable control of the switching devices even in heavy-duty conditions. Drive type SUP-DO is intended for wireless comunication thru 3G, 4G, WIFI, Bluetooth nets - everything according your request. These connection possibilities is also used for data transfer.

Online inquiry Skype
Close

Contact form

Technical information

Rated control voltage: 24V DC
Rated power supply voltage: 230V AC, other upon request
Mechanical endurance: 10000, 50000 CO
Lifetime (years): 20
Material of the cabinet: stainless steel, covered by paint RAL upon request
Output of the shaf, position: upon request
Emergency control: YES
Uplift: adjustable 80 - 180mm, possible to change
Output momentum torgue: 200 - 2000 Nm
Output angle: upon request
Signaling positions:Limit switches per position, placed direct on main device shaft, Auxiliary cam-switch (high switch capacity)
Kind of communication: GPRS / LTE, 3G, 4G, Radio
Communication protocols: IEC 60870-5-101, IEC 60870-5-104, Modbus (RTU), Modbus TCP, DNP 3.0 TCP
Inputs: 16x DI, 4x AI - expendable
Outputs: 4x DO, relays - expendable

360 Model

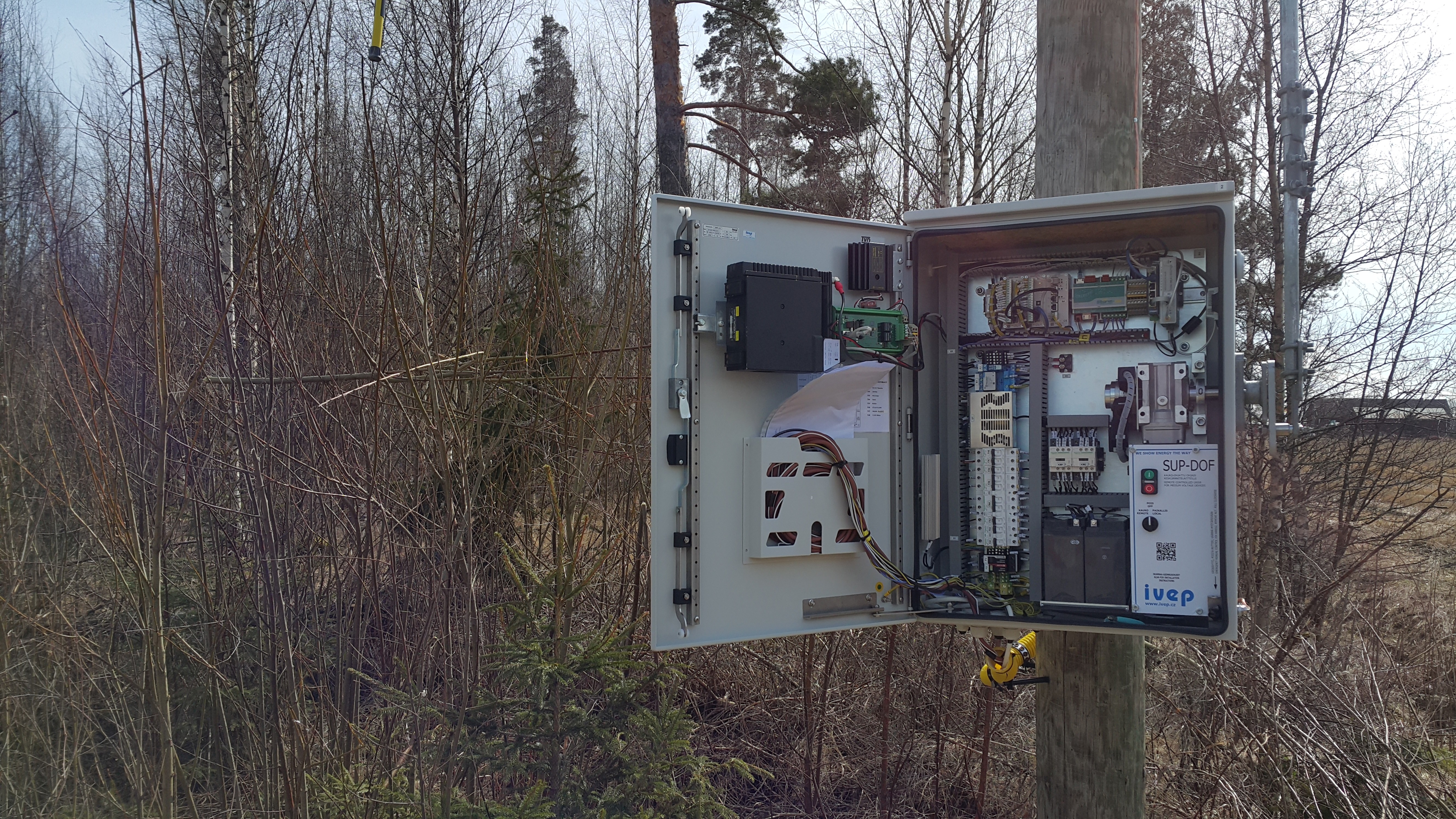

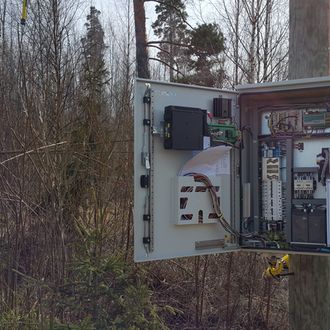

F.L.I.R. IVEP ADD ON system
F.L.I.R. IVEP ADD ON system

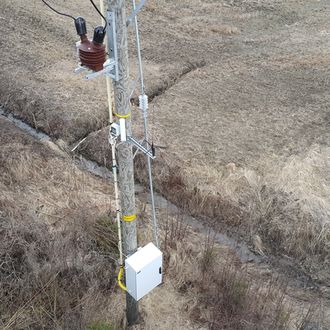

F.L.I.R. LM IVEP system (LINE MEASUREMENT)
F.L.I.R. LM IVEP system (LINE MEASUREMENT)
