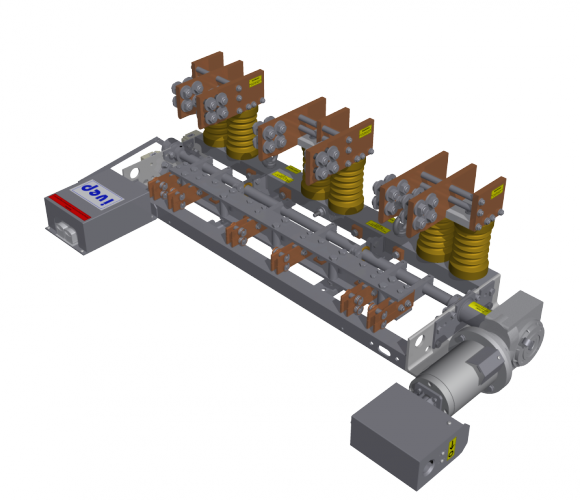

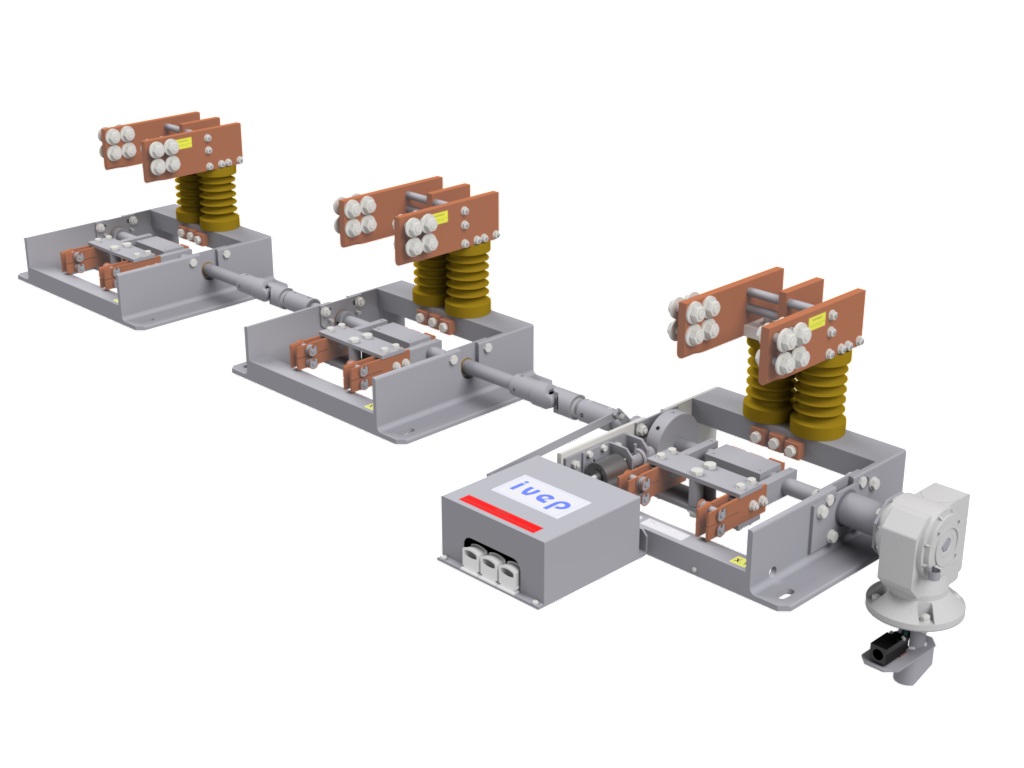

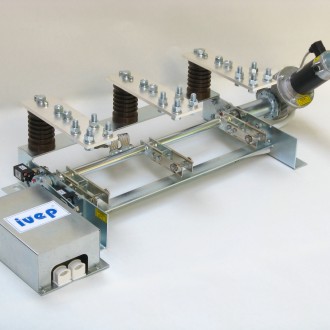

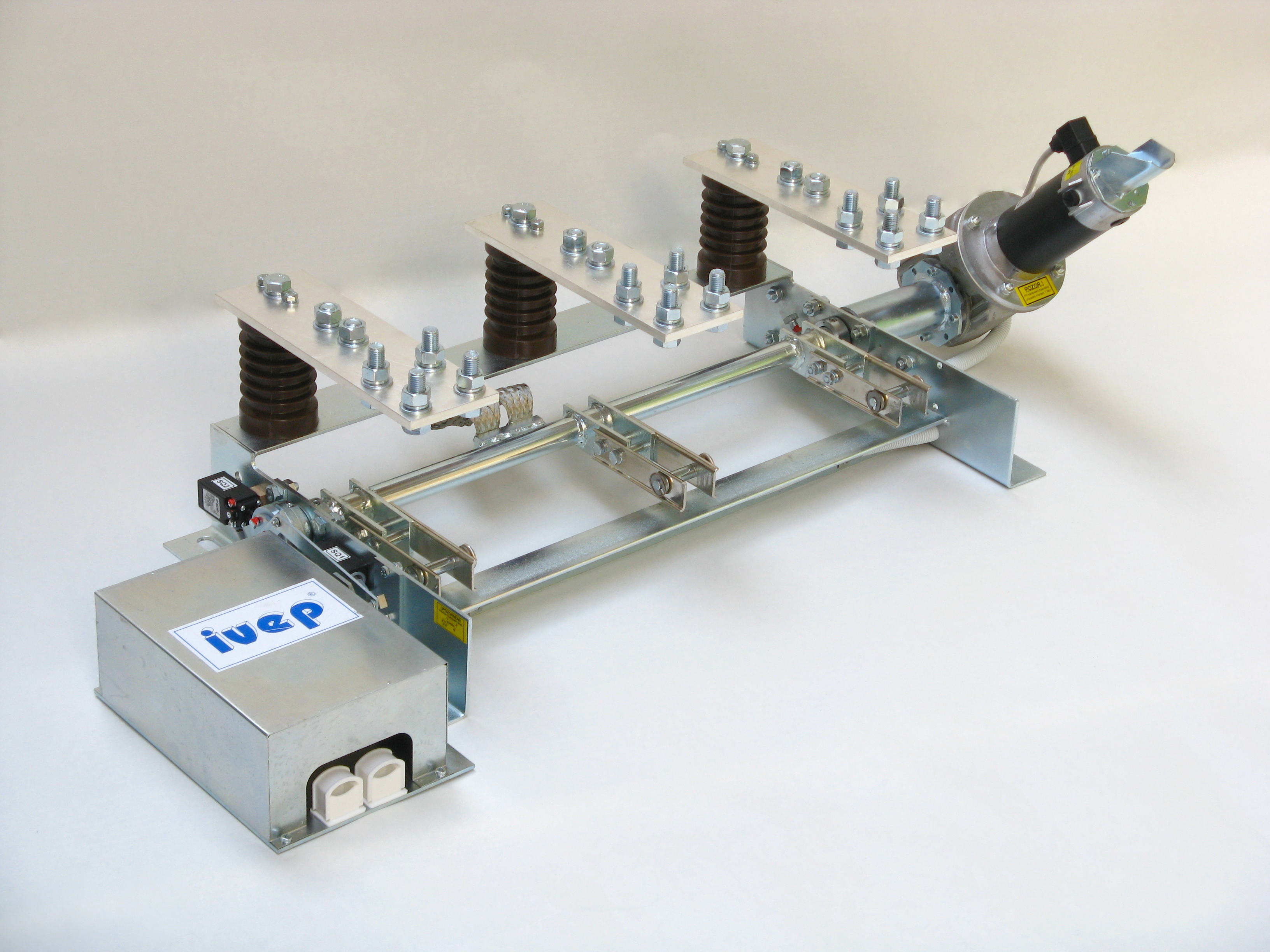

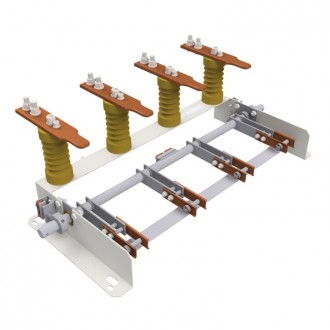

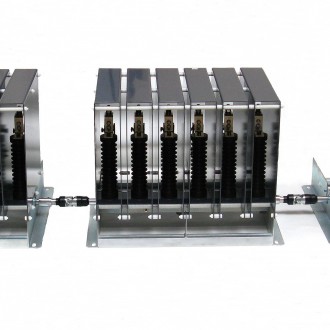

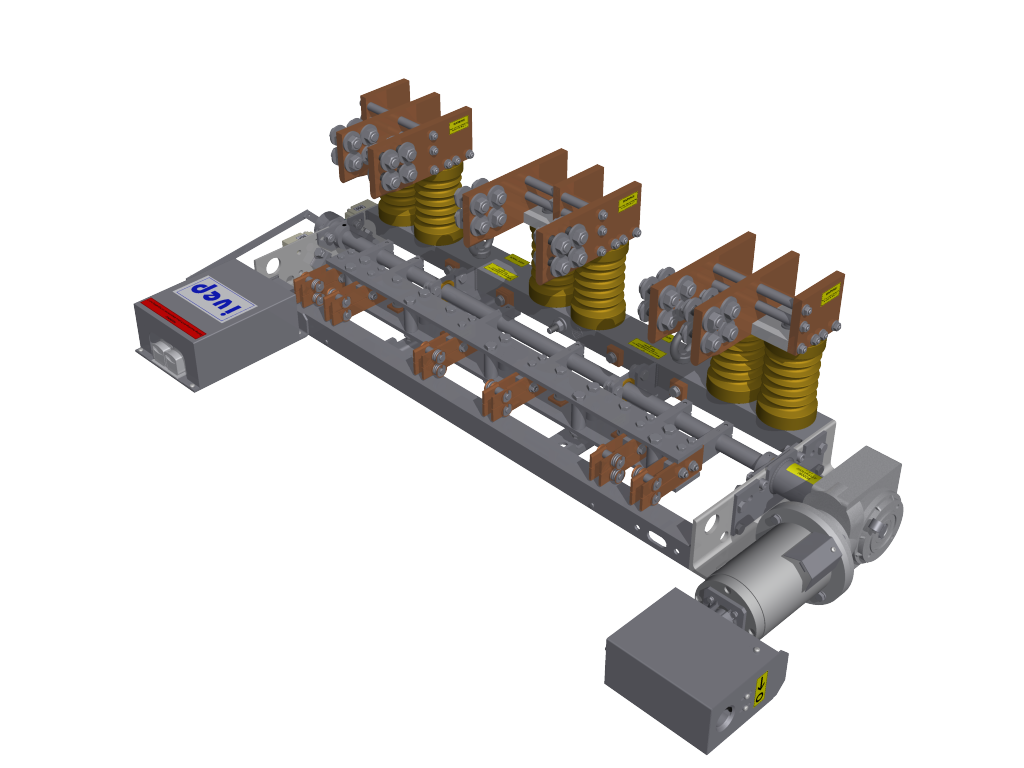

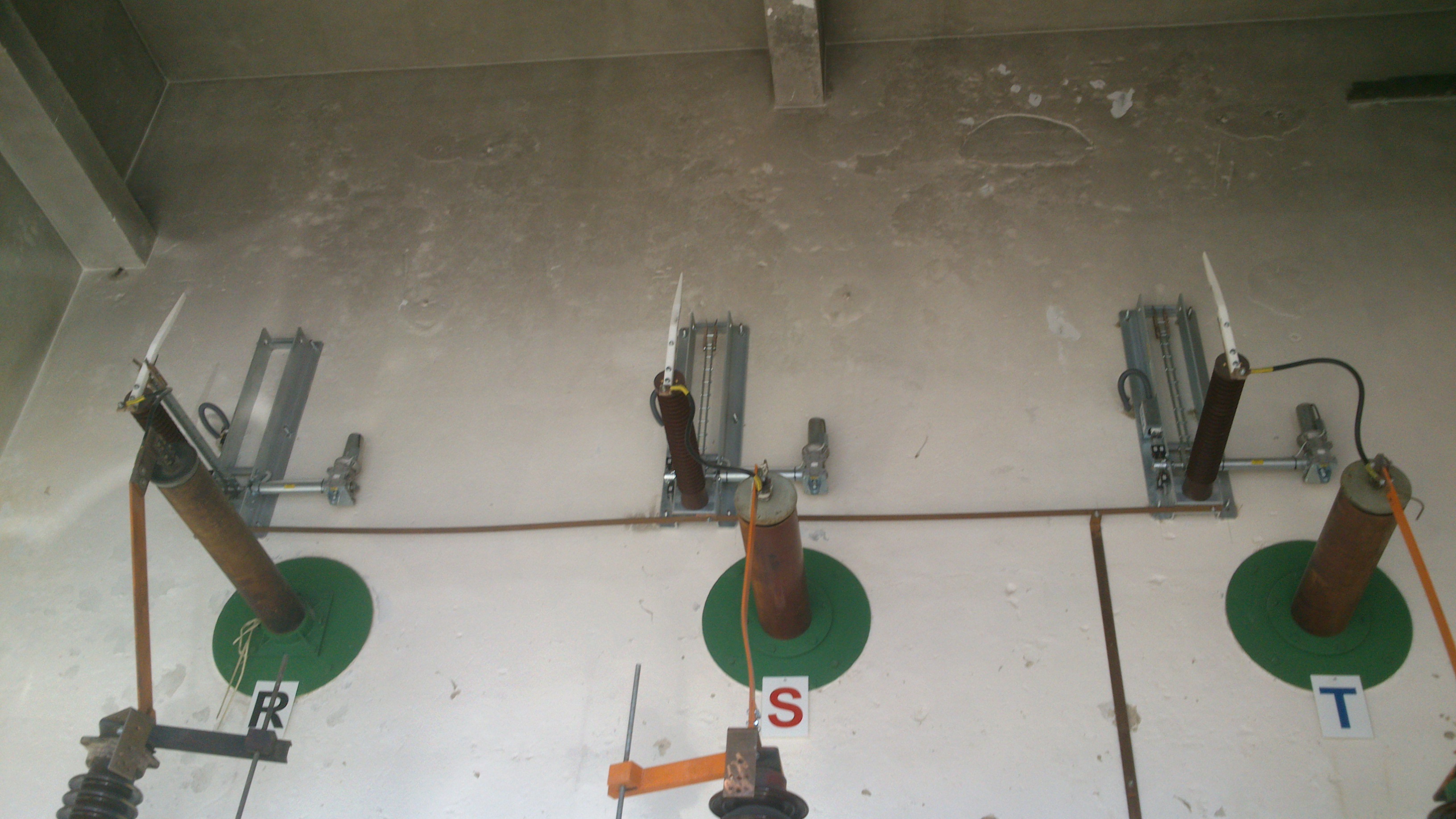

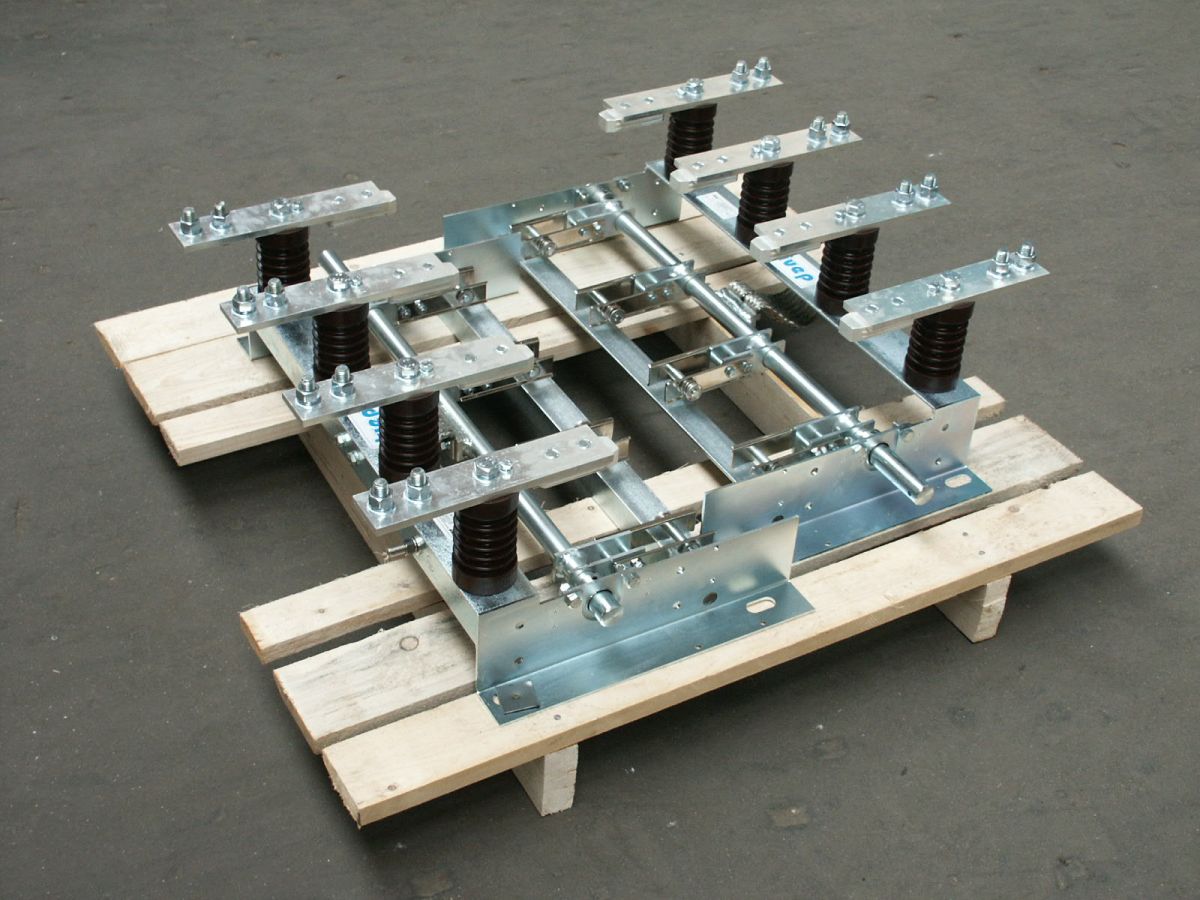

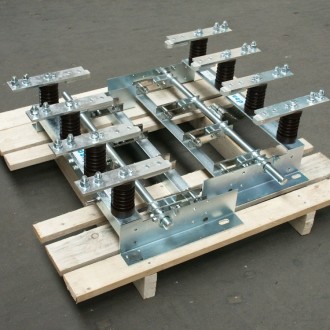

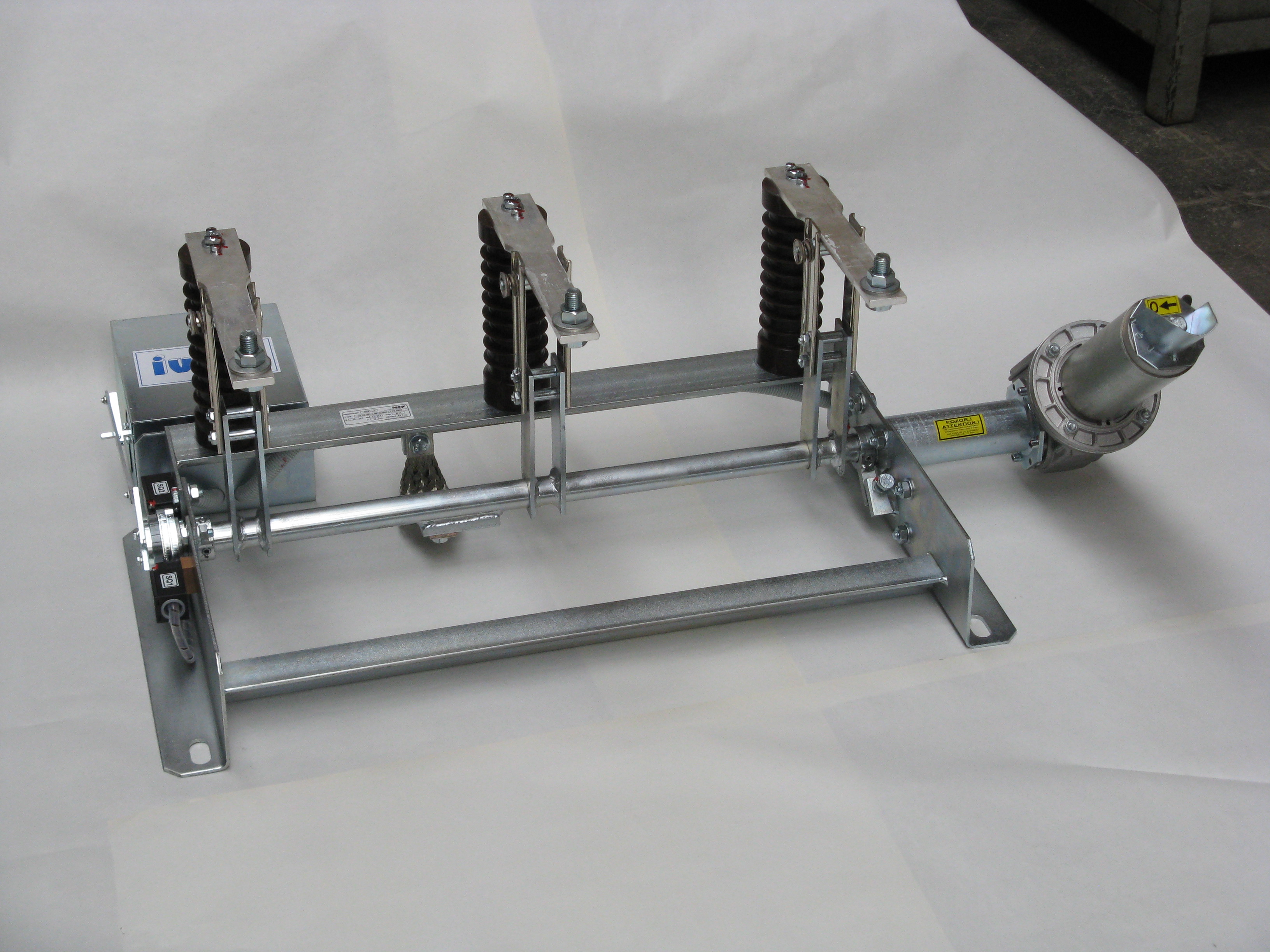

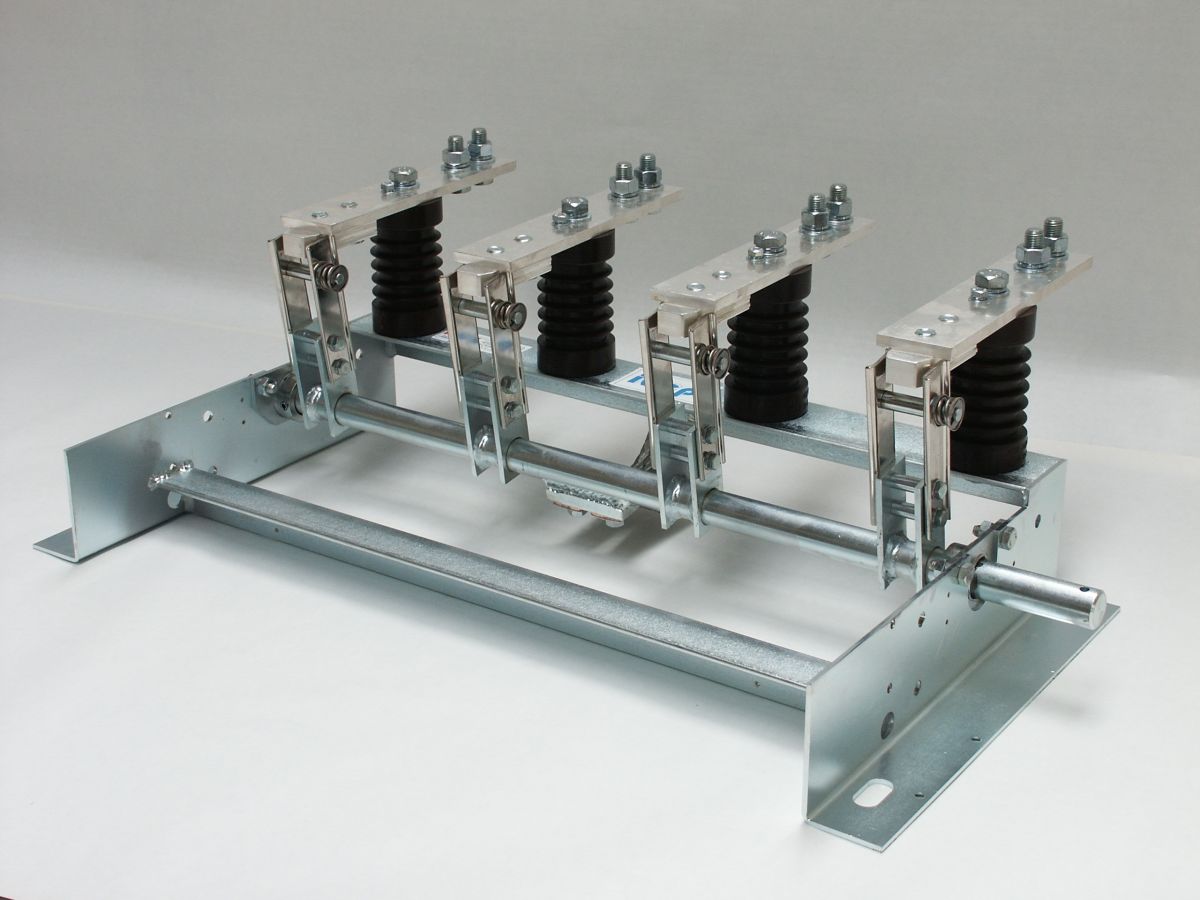

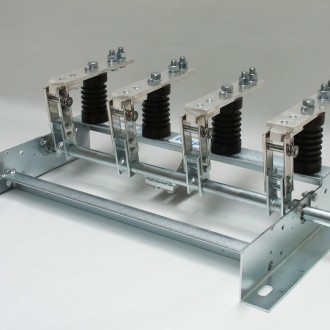

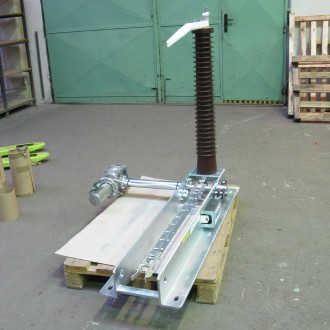

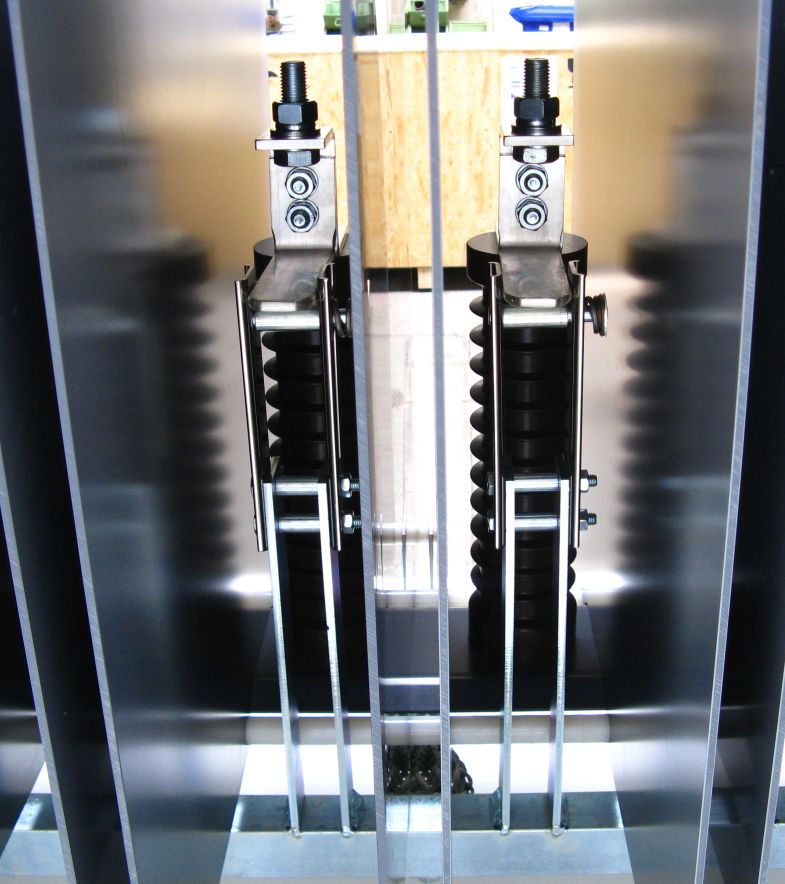

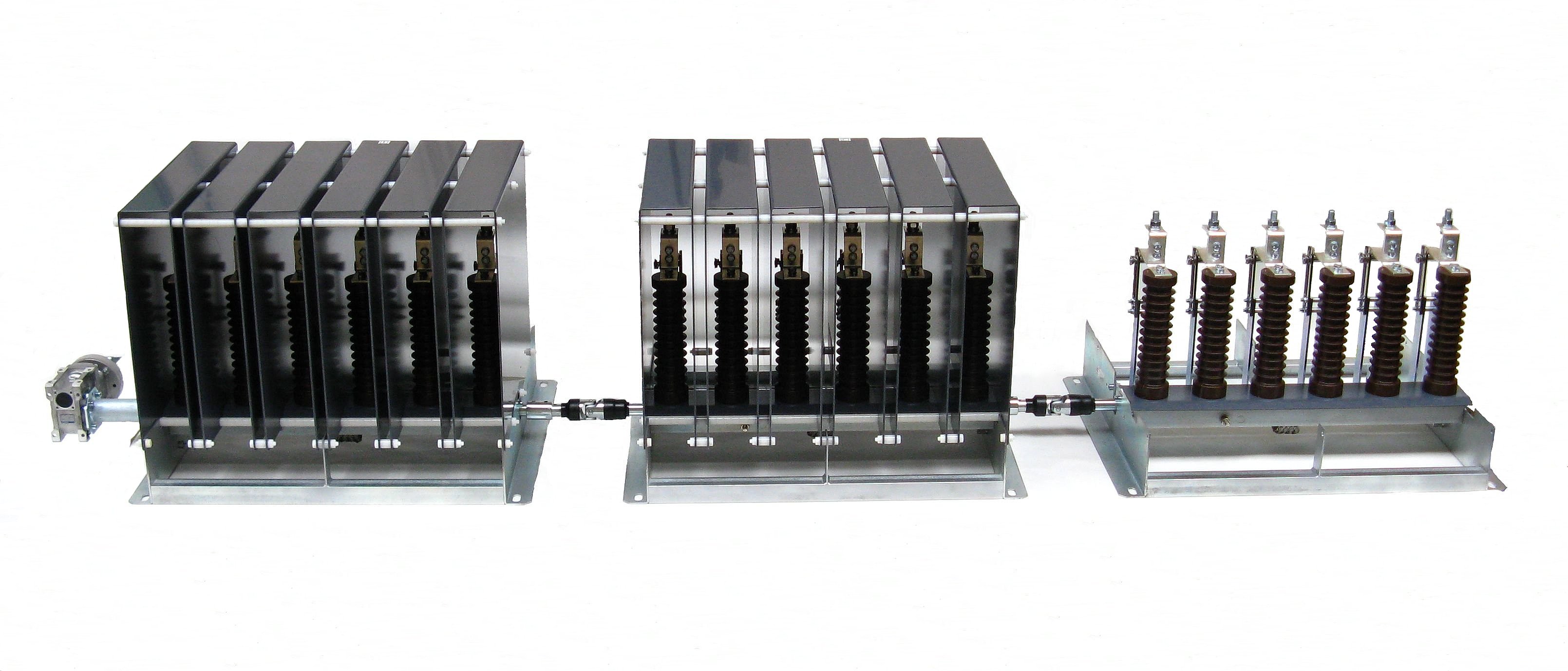

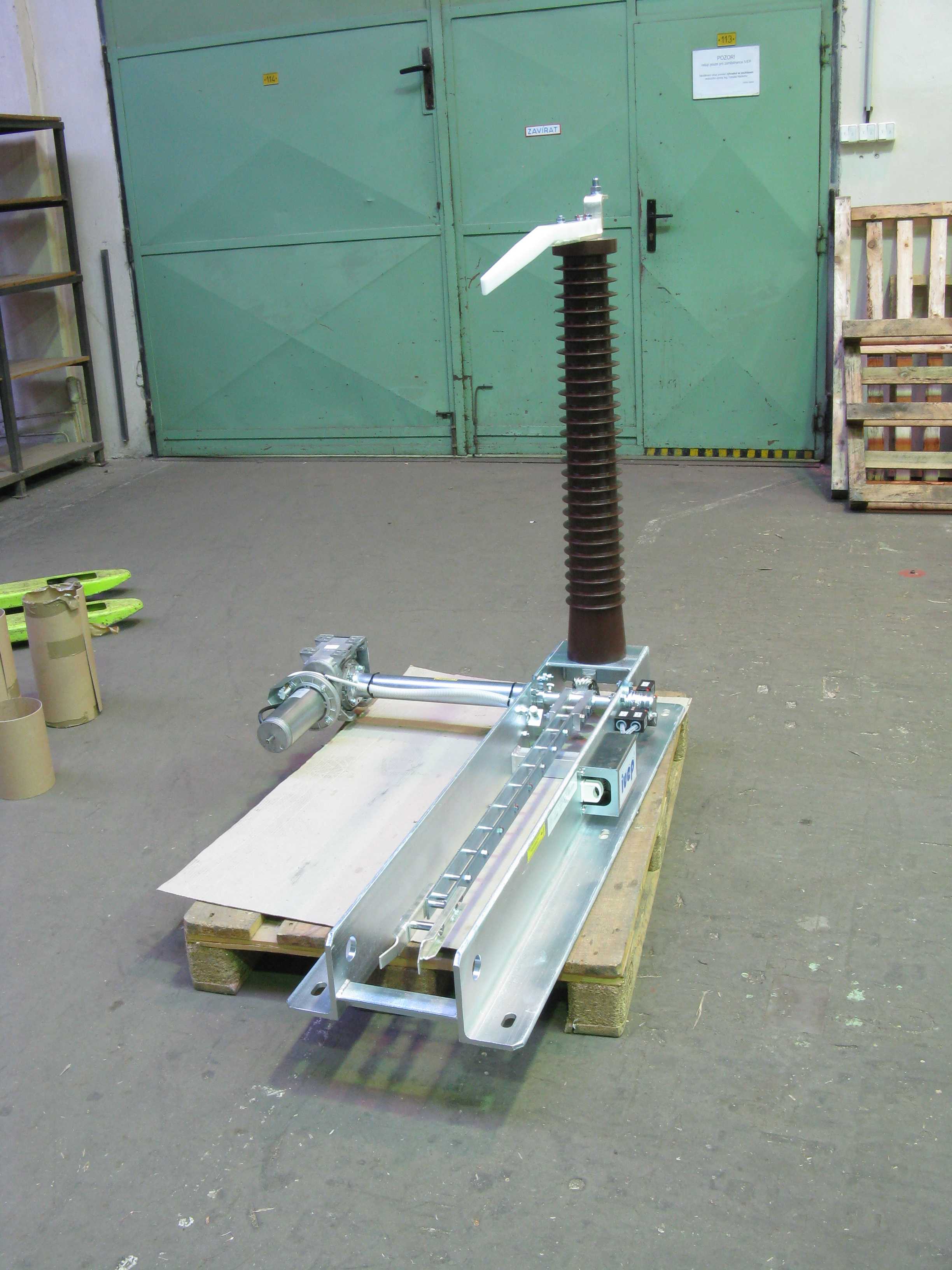

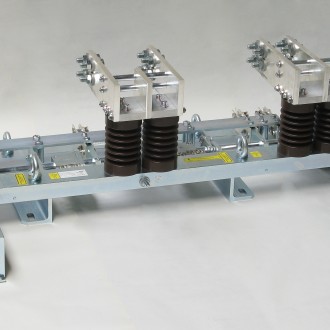

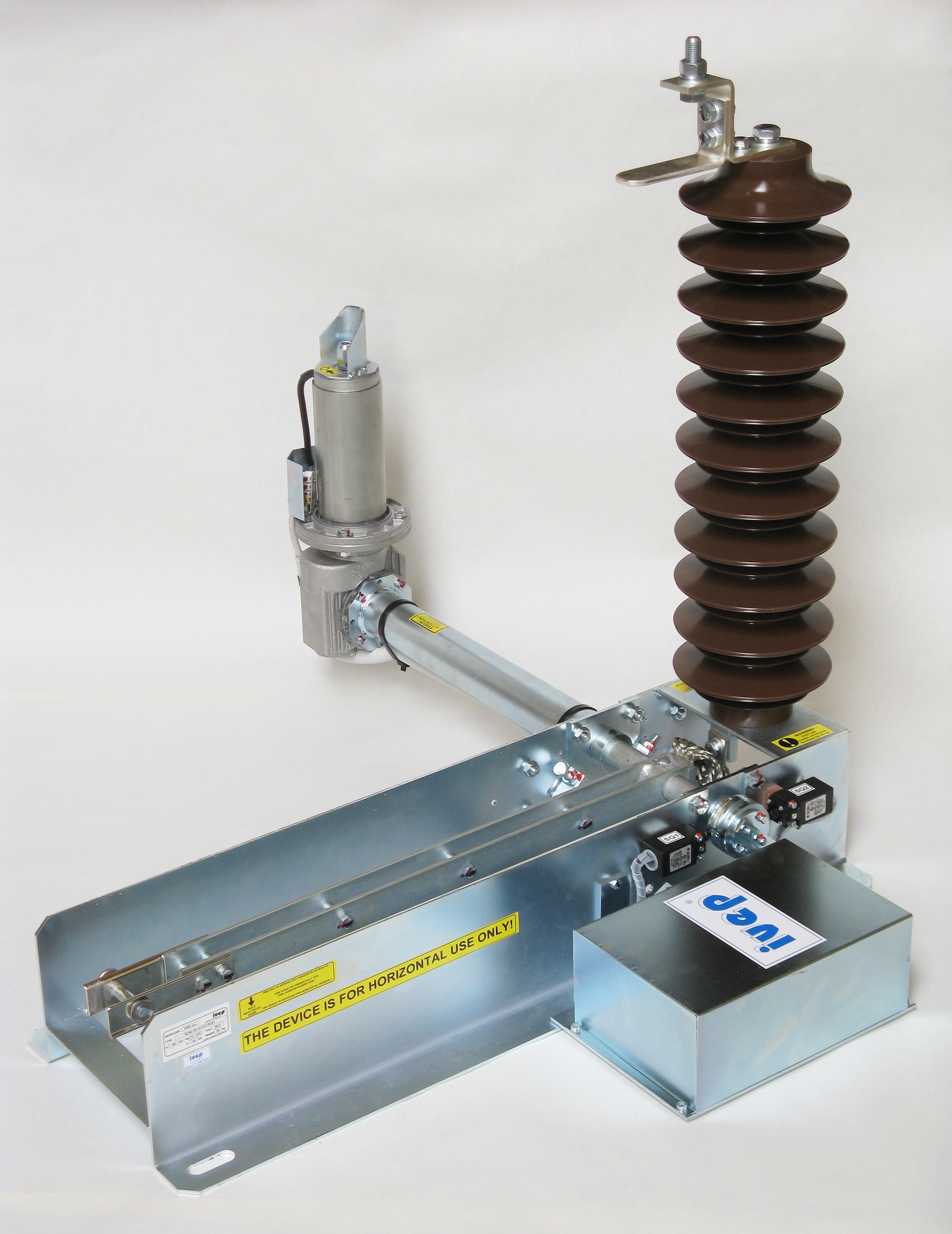

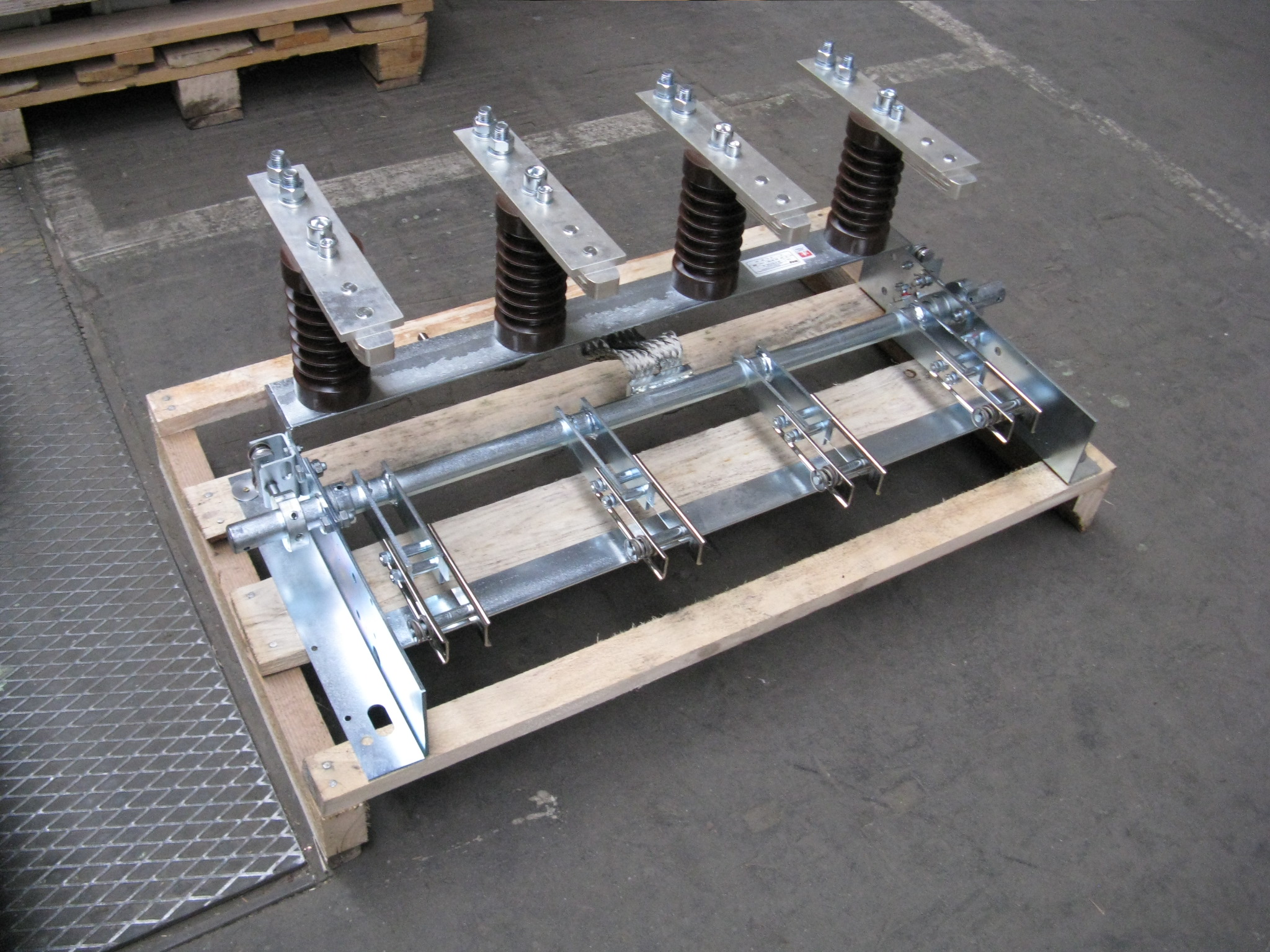

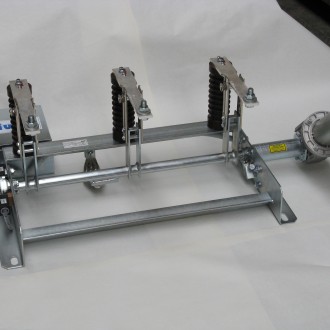

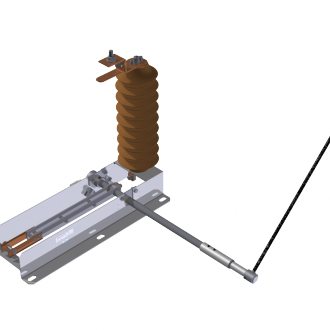

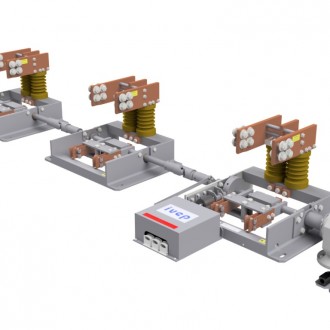

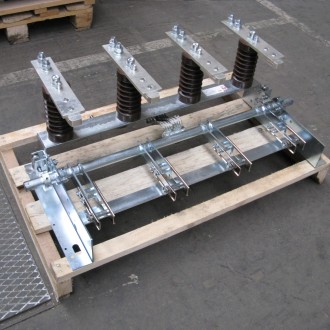

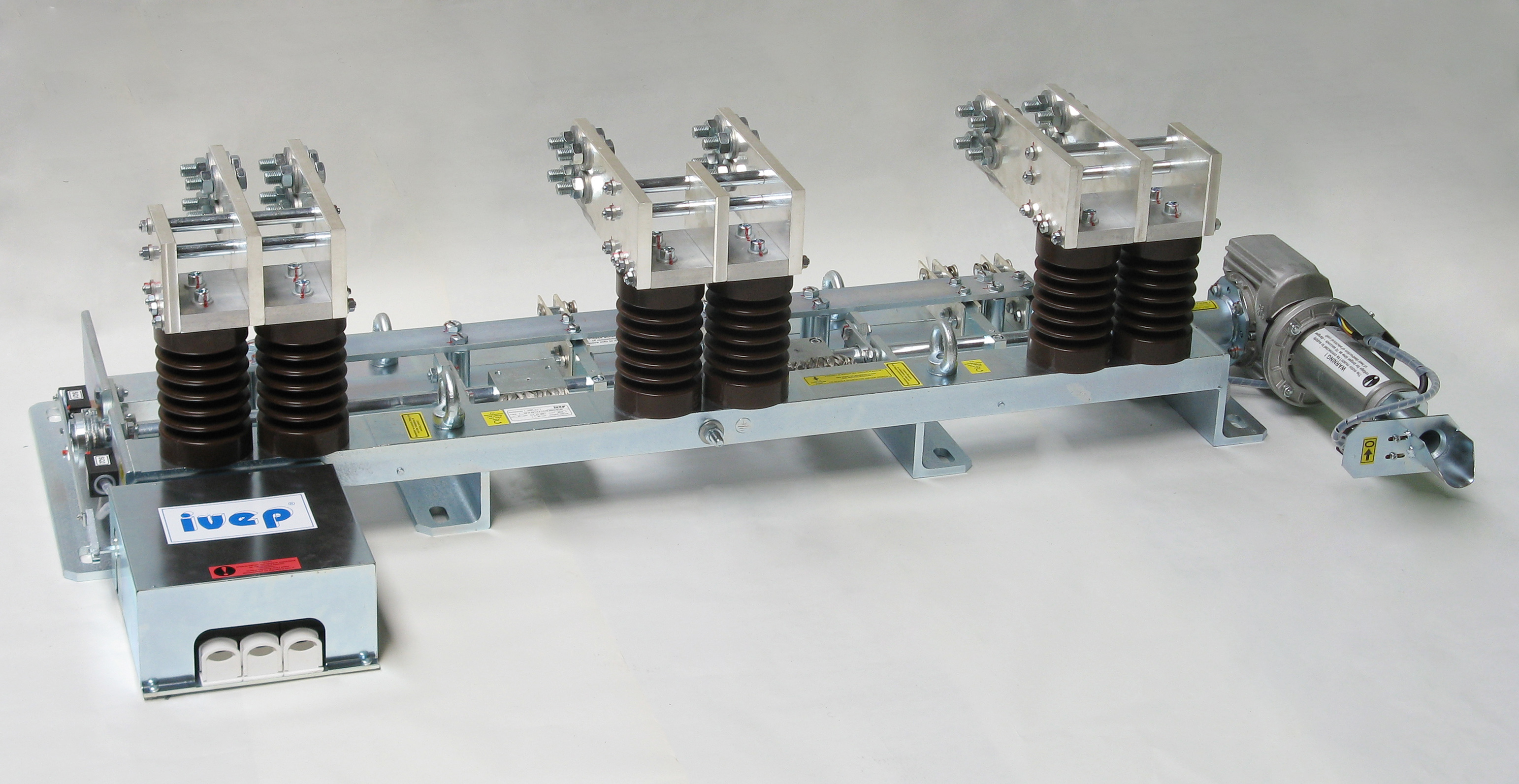

Earthing switches QZ

Earthing switches QZ

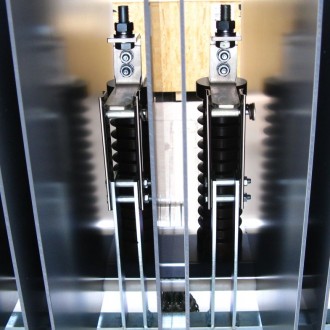

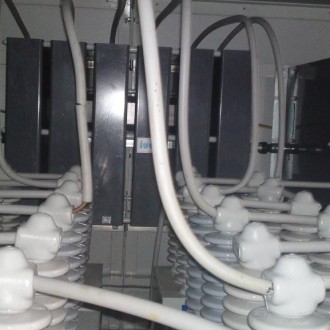

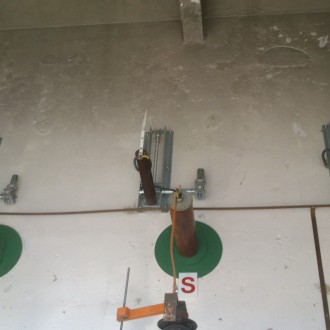

This switching device is used for the grounding of electric circuits without voltage, in some cases is possible to use them for discharging of capacitors or capacity current of the cable/grid. This devices are intended to use for the MV switchgears cabinets or in MV switching stations. The earthing switch can be either of electric motor drives or hand operated type, with manual actuation of the electrical drives.

Online inquiry Skype
Close

Contact form

Technical information

Rated voltage: 1 – 123 kV
Rated shorttime current 1s (3s): 16 – 120 kA
Rated dynamic current: 40 – 300 kA
Rated frequency: 50 Hz (16 Hz, 60 Hz)
Mechanical endurance: 2000, 5000, 10000 (60000) C-O
Minimum lifetime (years): 40
Drive type: Hand drive, Hand drive via gearbox, motor drive
Motor type: 12V DC, 24V DC, 48V DC, 60V DC, 110V DC, 220V DC, 230V AC, 400V AC
Signaling positions:Limit switches per position, placed direct on main device shaft, Auxiliary cam-switch (high switch capacity)
Insulators type: Epoxy resin, porcelain (upon request)

360 Model

Accessories

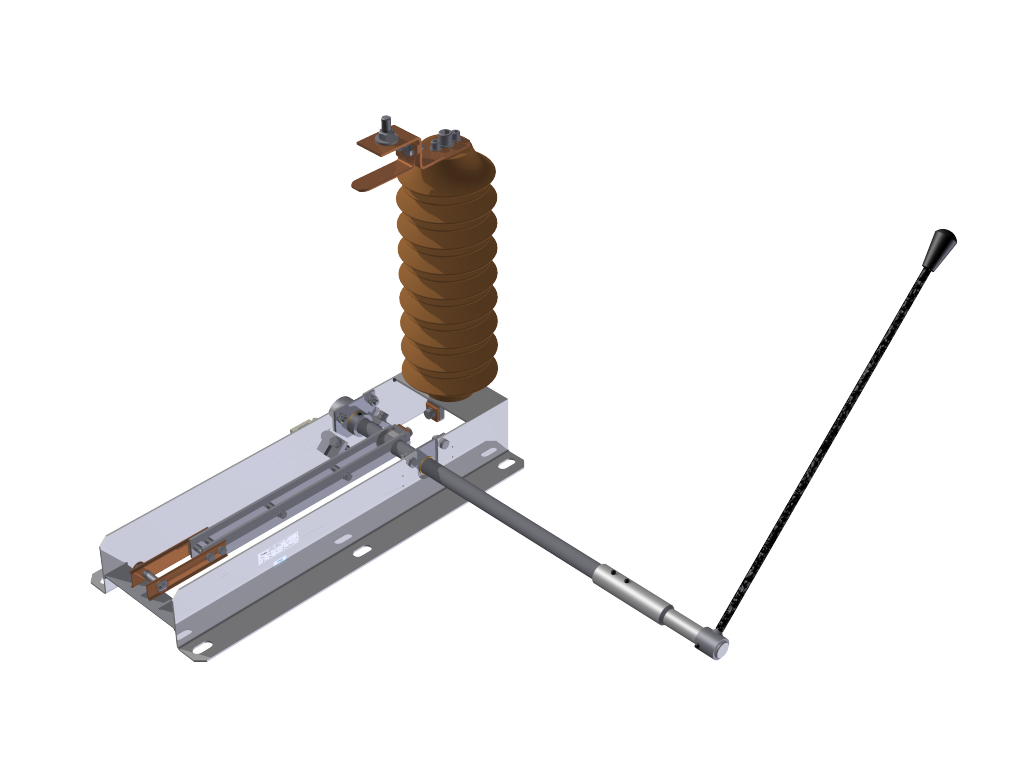

  • Insulating handling rod IMT
  • doplnit
  • doplnit
  • Blocking magnet BLM
  • doplnit
  • doplnit
