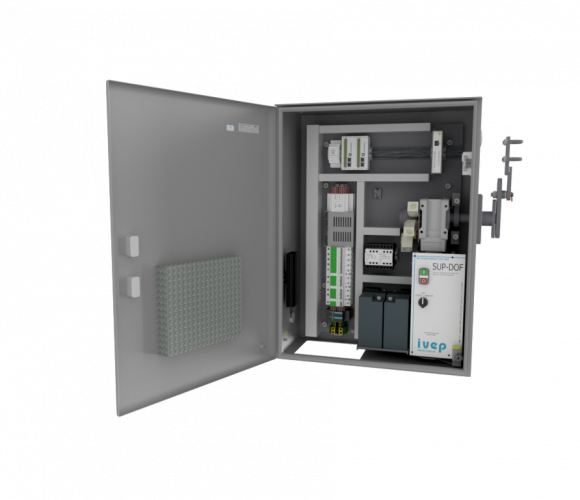

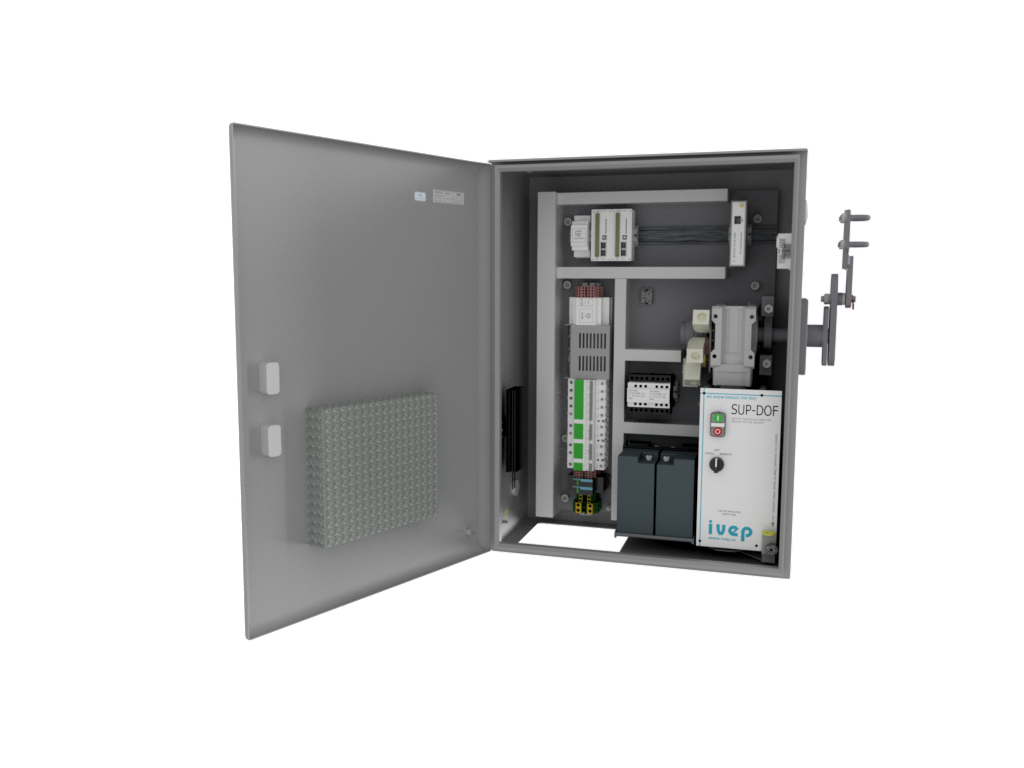

Electromotive outdoor drive type SUP-DOF - remote controlled GPRS/LTE/Radio, F.L.I.R. (FAULT, LOCATION, ISOLATION, RESTORATION) IVEP SYSTEM, IND 4.0 ready

Electromotive outdoor drive type SUP-DOF - remote controlled GPRS/LTE/Radio, F.L.I.R. (FAULT, LOCATION, ISOLATION, RESTORATION) IVEP SYSTEM, IND 4.0 ready

Technical information

Rated control voltage: 24V DC
Rated power supply voltage: 230V AC, other upon request
Mechanical endurance: 10000, 50000 CO
Lifetime (years): 20
Material of the cabinet: stainless steel, covered by paint RAL upon request
Output of the shaf, position: upon request
Emergency control: YES
Uplift: adjustable 80 - 180mm, possible to change
Output momentum torgue: 200 - 2000 Nm
Output angle: upon request
Signaling positions:Limit switches per position, placed direct on main device shaft, Auxiliary cam-switch (high switch capacity)
Kind of communication: GPRS / LTE, 3G, 4G, Radio
Communication protocols: IEC 60870-5-101, IEC 60870-5-104, Modbus (RTU), Modbus TCP, DNP 3.0 TCP
Inputs: 16x DI, 4x AI - expendable
Outputs: 4x DO, relays - expendable

QR Link

http://manual.ivep.cz/sup-dof
