Air insulated LV, MV switchgears, Generator switchgears, Transient cabinets

We can offer indoor and outdoor switchgears in several classes. We are focused on tailor-made construction and we adapt to your needs. The basic class of switchboards are medium voltage switchgear for distribution - secondary distribution. The switchboards are compact and can be fully customized. Another class is the control cabinets and LV switchboards. As a specialty, we offer so-called transient cabinets in full specture of nominal voltage, mainly for the connection of high voltage cables and, for example, for interconnection of different bus systems from different producers.
The top class of switchboards represents primary distribution cabinets, generator switchboards.

The switchgears are manufactured and tested according to IEC, selected devices also according to GOST, ANSI, IEEE standard. All devices have the option of manual or motor control. They are manufactured in a three-pole, two-pole, one-component and optional multi-pole design. We also offer DC design.

Products

Main terminal boxes of MV generators

The Main Terminal Boxes are used to conduct electrical power to the main current conductors and to create a star point on the opposite side of the generator stators windings. Typically, the cabinets contain measuring current transformers and voltage transformers to protect the generator. They may also include overvoltage protection of generator, optionally with protective capacitors, or a partial discharge measurement system of the generator windings. The cabinets are adapted to the generator design, project by project. It can be one common cabinet for the power output and the star point - MTB & N, or it can be divided spatially into two cabinets MTB part (power output) and N part (star point).

Inquire More information

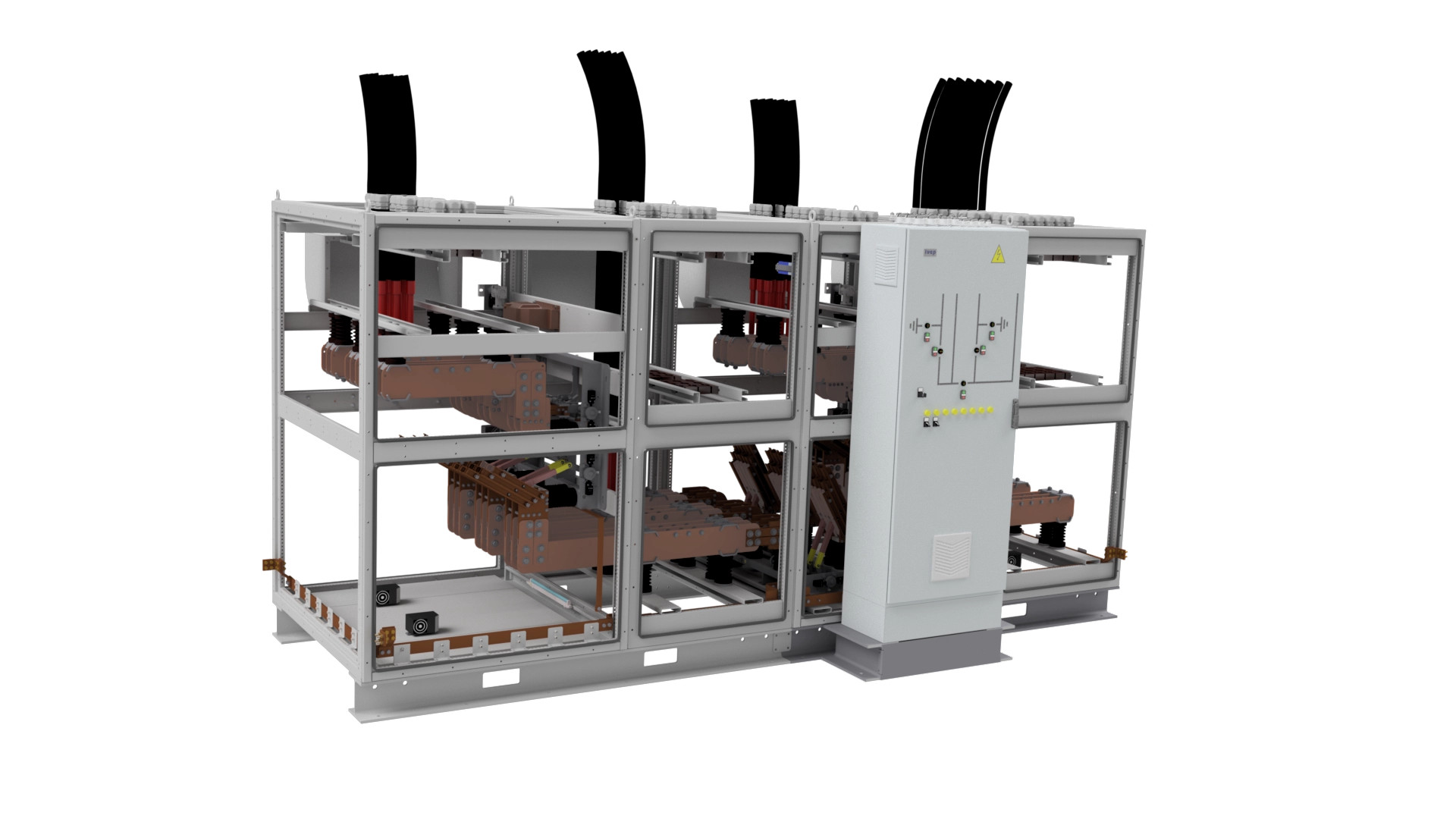

Generator Switchgear MV, indoor design, primary distribution

The GSI indoor switchgear is placed in power output of the electric energy from the generator or the transformer in the primary distribution. High short-circuit resistance, variability and tailor-made design. Possibility to connect via busbar system, insulated busbars or cables.

Inquire More information

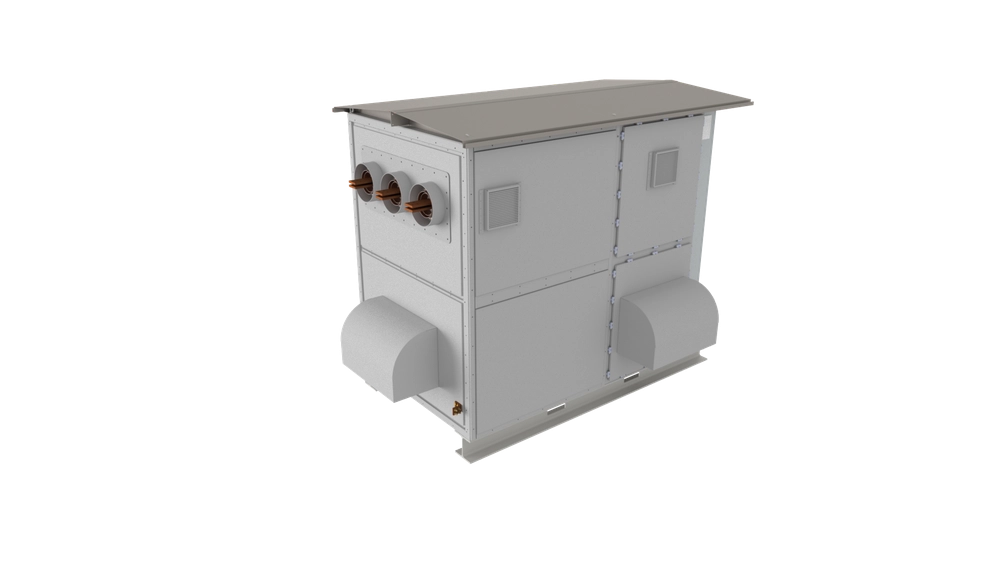

Generator Switchgear MV, outdoor design, primary distribution

The GSO outdoor switchgear is placed in power output of the electric energy from the generator or the transformer in the primary distribution. High short-circuit resistance, variability and tailor-made design. Possibility to connect via busbar system, insulated busbars or cables. Outdoor design, complete stainless steel finish. Ideal choice for demanding climatic conditions or the chemical industry.

Inquire More information

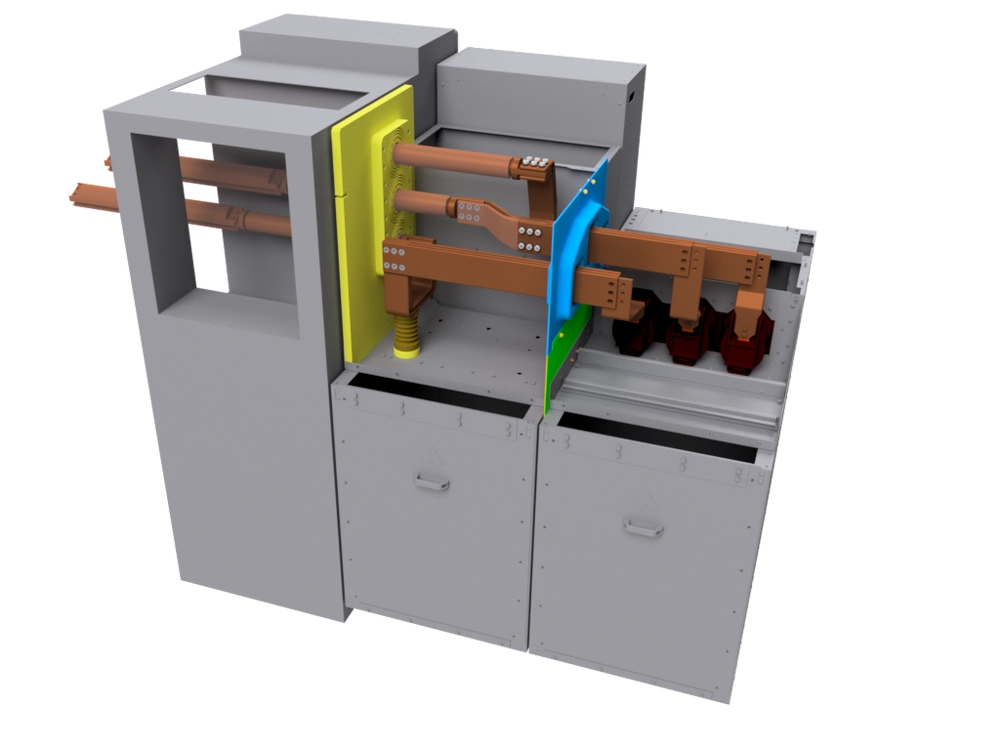

Transient switchgears, interconnection cabinets

Transient cabinets are used wherever high-voltage lines, cables, or busbars are to be connected together. Everything is built into the enclosure with required cover and resistance.

Inquire More information

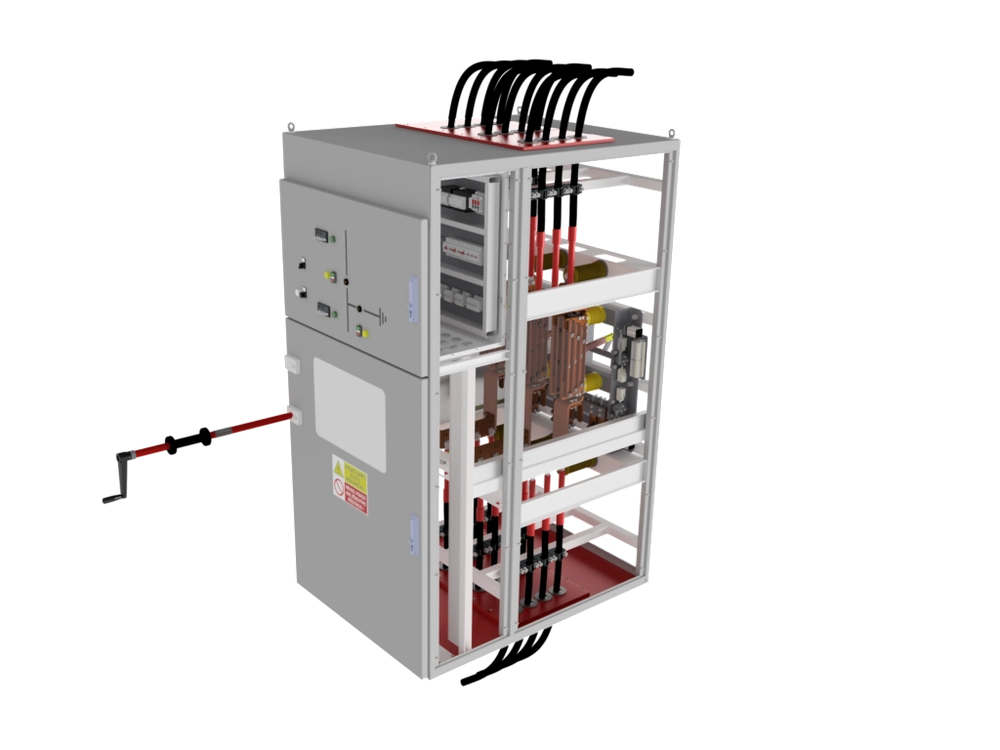

MV Switchgears, secondary distribution

MV switchboards for secondary distribution can be produced in both indoor and outdoor design. Type MVSI and MVSO type are used for distribution of energy. Advantage is a technical solution tailored to your needs. Possibility to direct connect busbars, isolated busbars or cables.

Inquire More information

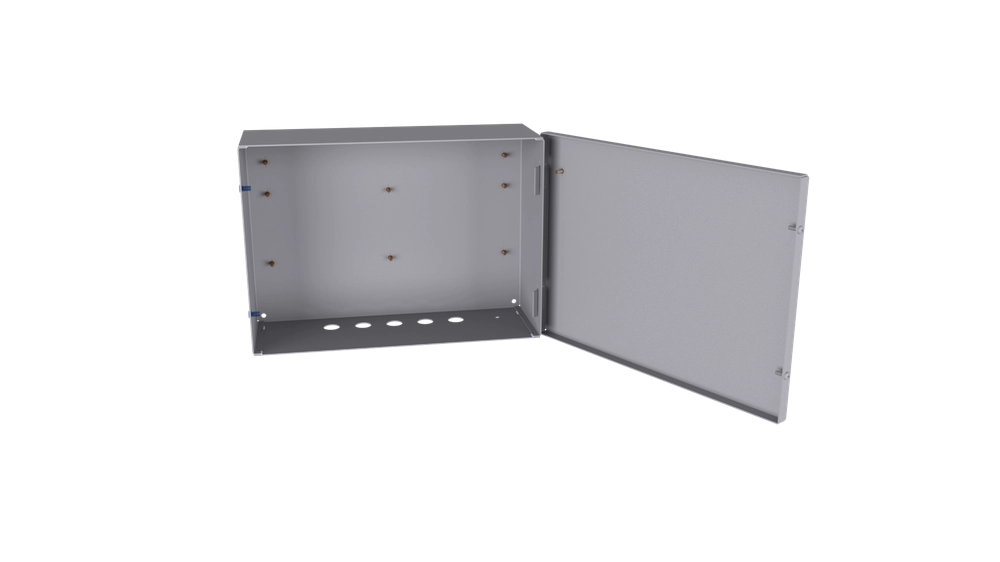

Steel-sheet cabinet for general indoor use

This steel-sheet cabinet (enclosure) for general use and indoor mounting is designed for mounting LV equipment and devices, communication and network-based equipment. Also for the installation of IT equipment, installation of structured cabling, installation of pneumatic and mechanical systems and for other applications where protection degree in excess of IP 30 is not required.

Inquire More information
