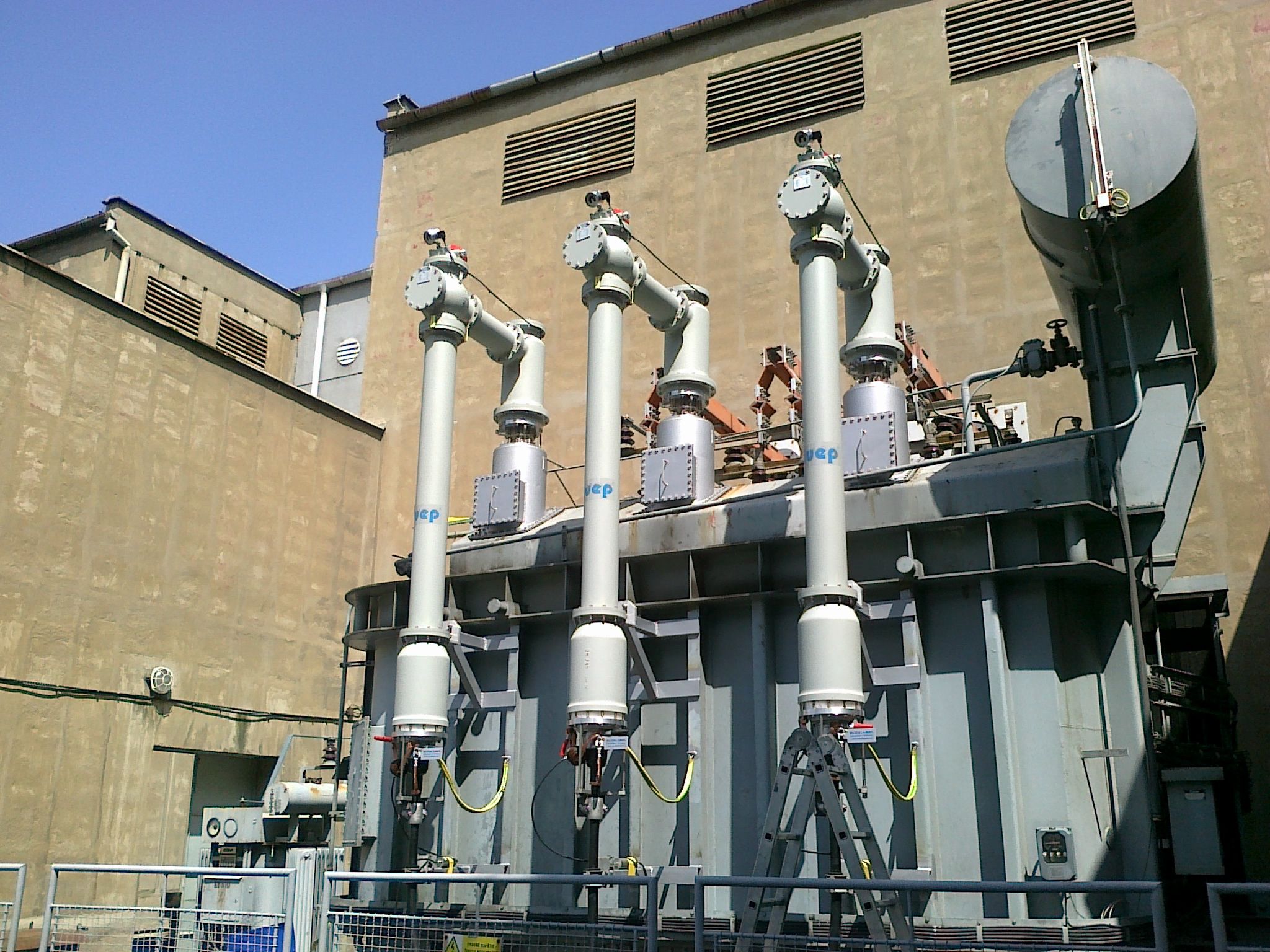

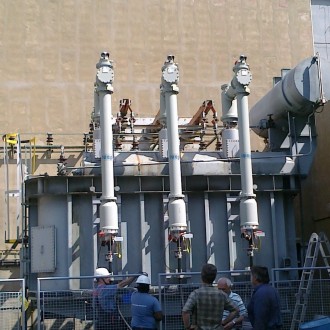

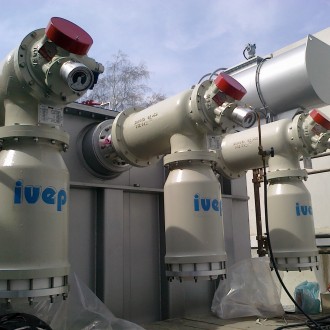

SF6 gas insulated cable bushing for 110 kV transformers

SF6 gas insulated cable bushing for 110 kV transformers

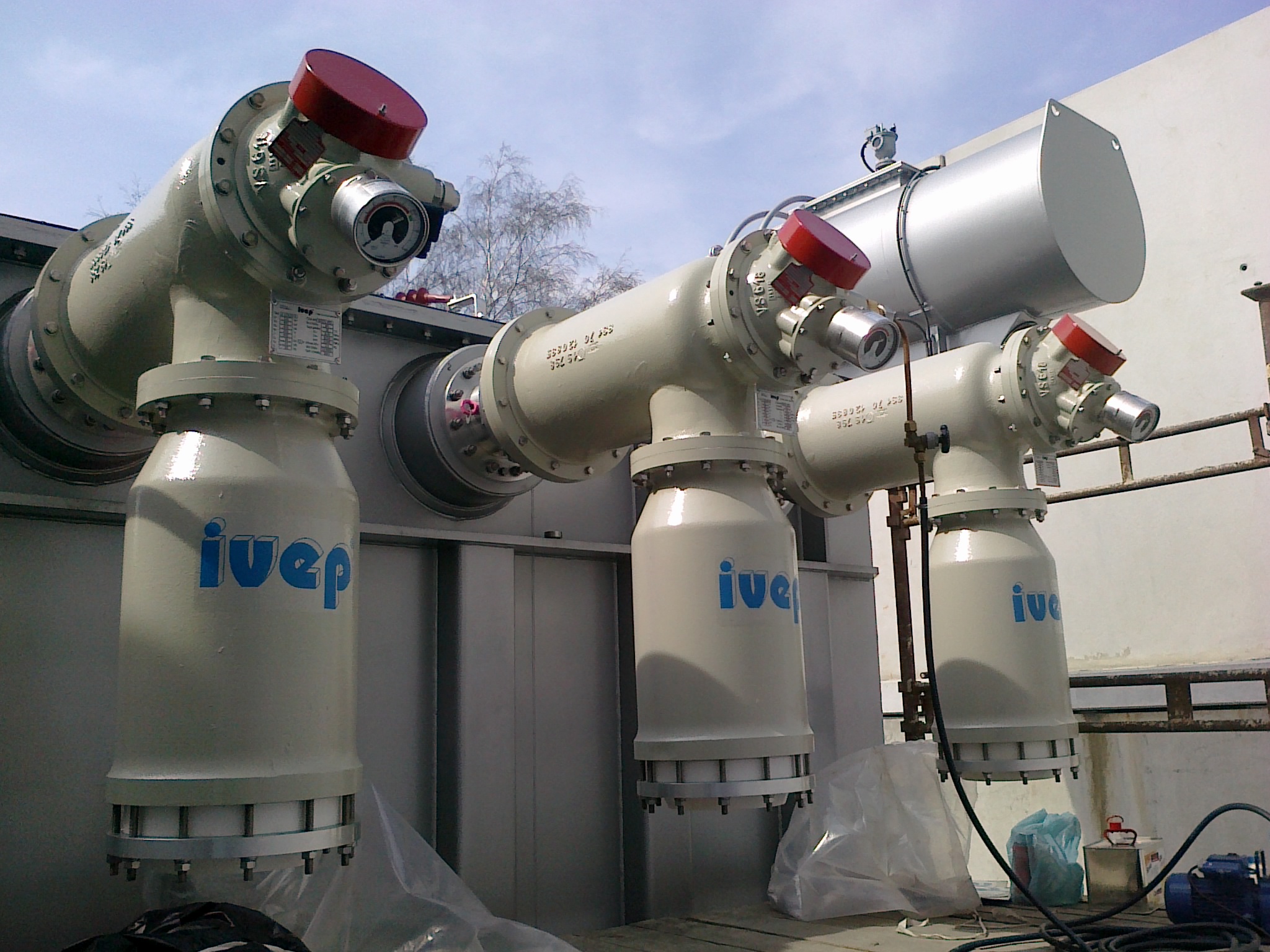

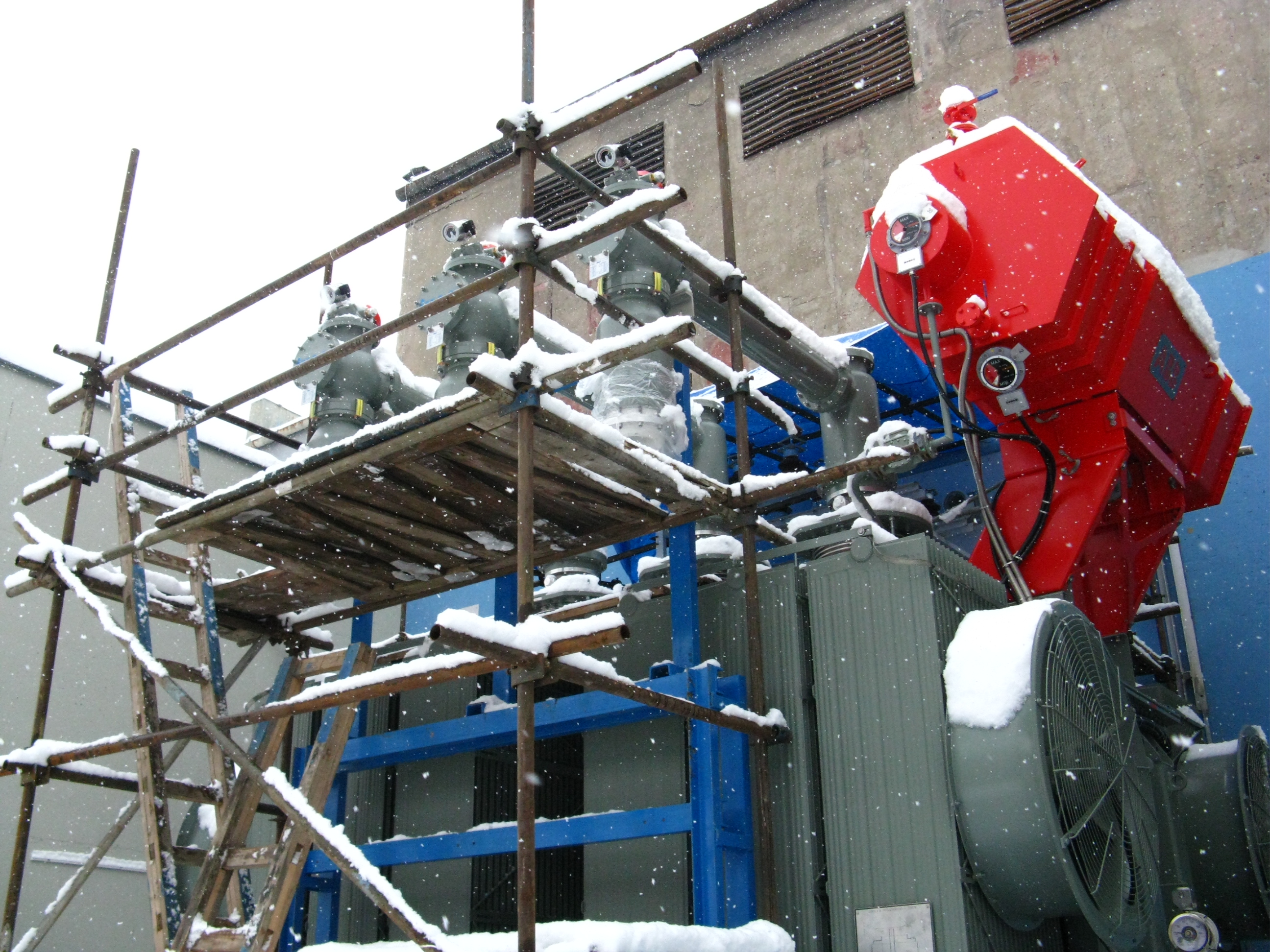

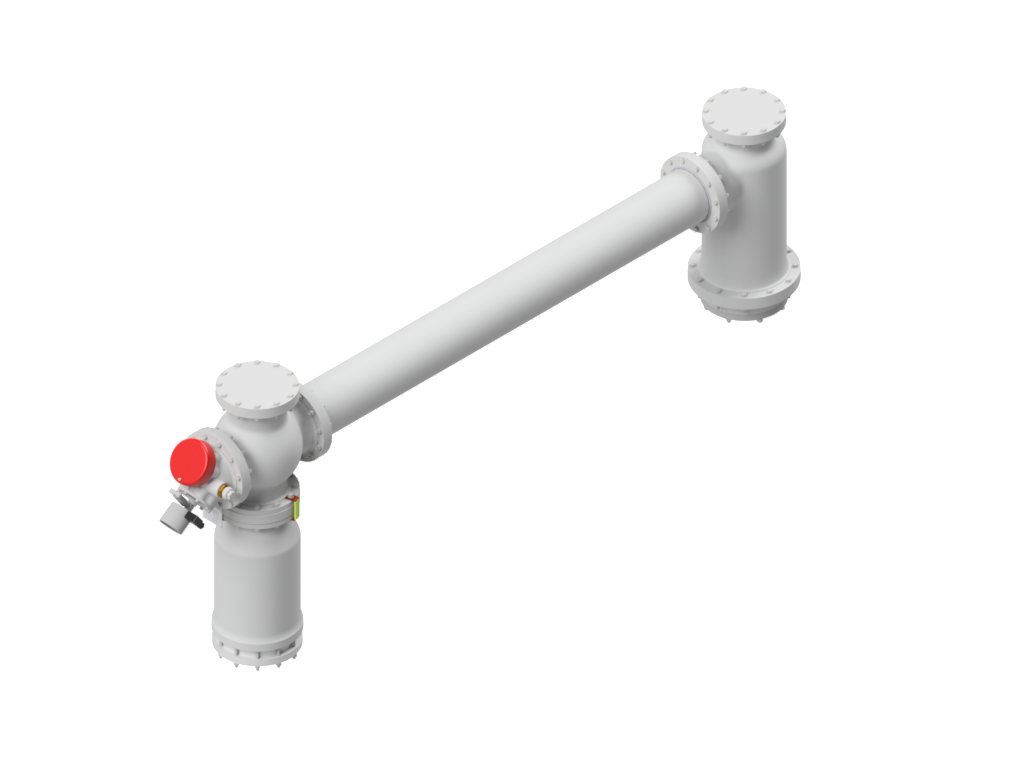

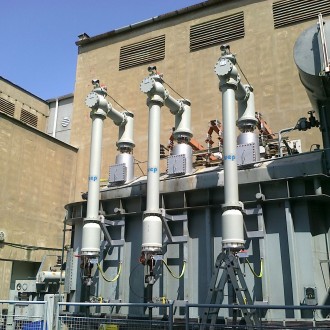

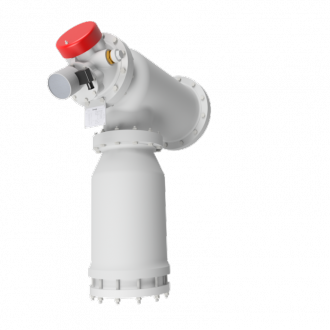

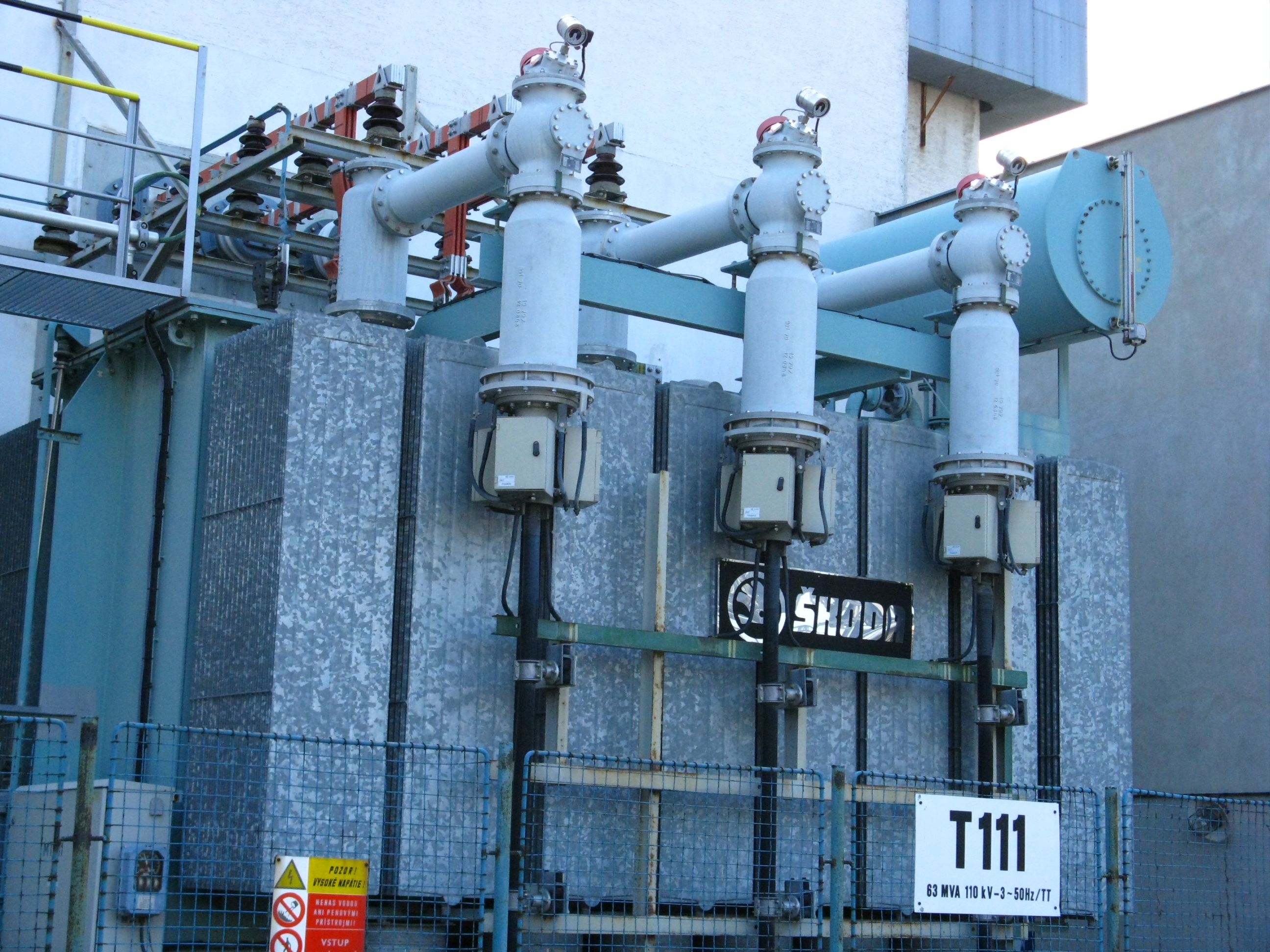

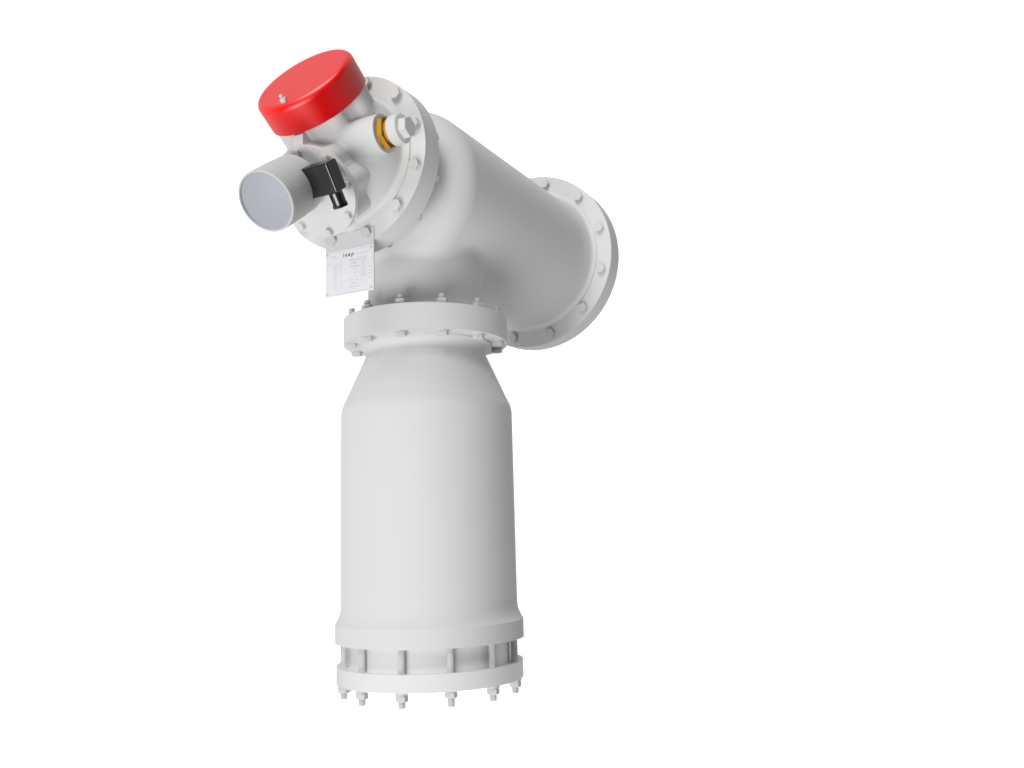

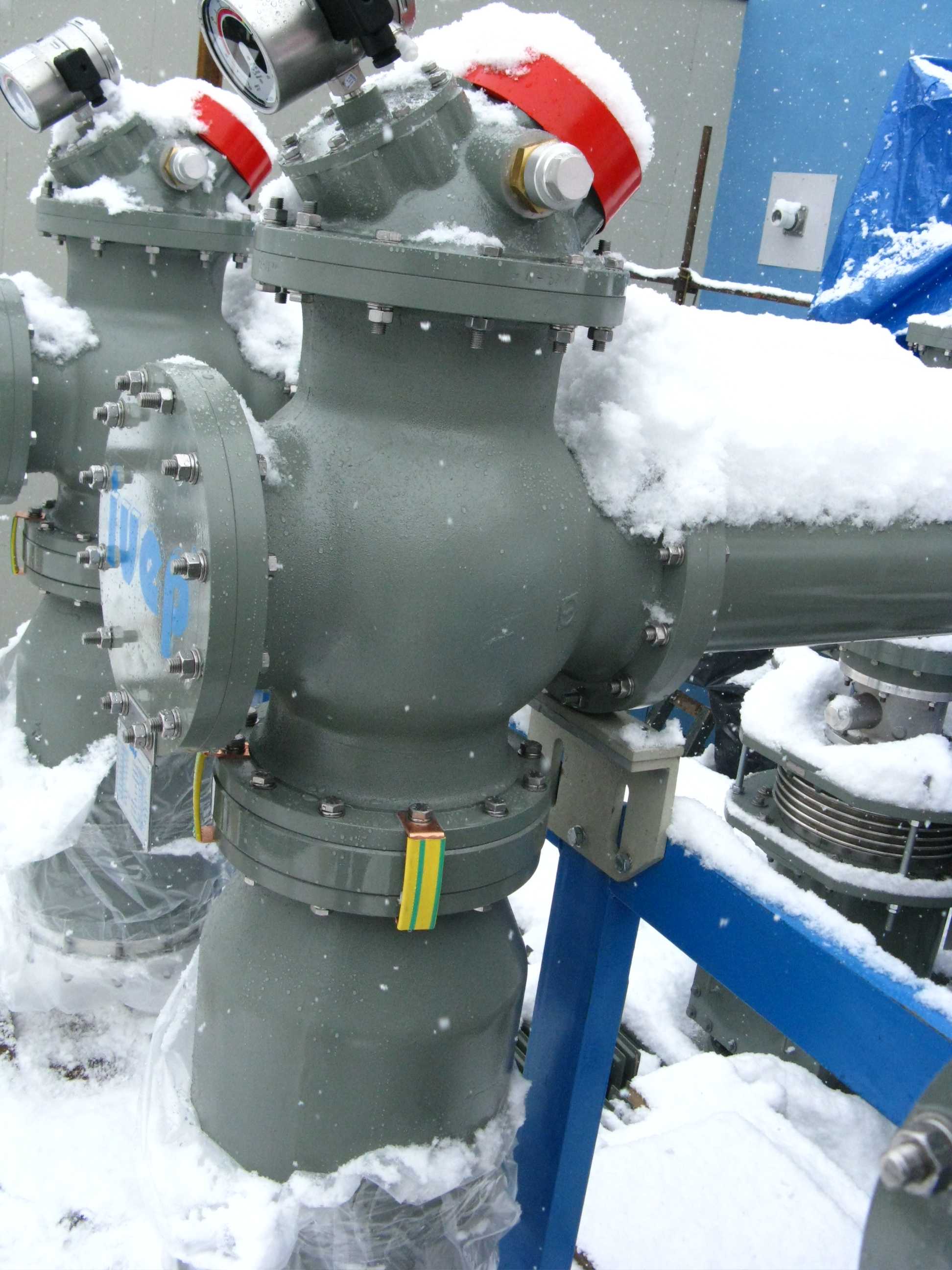

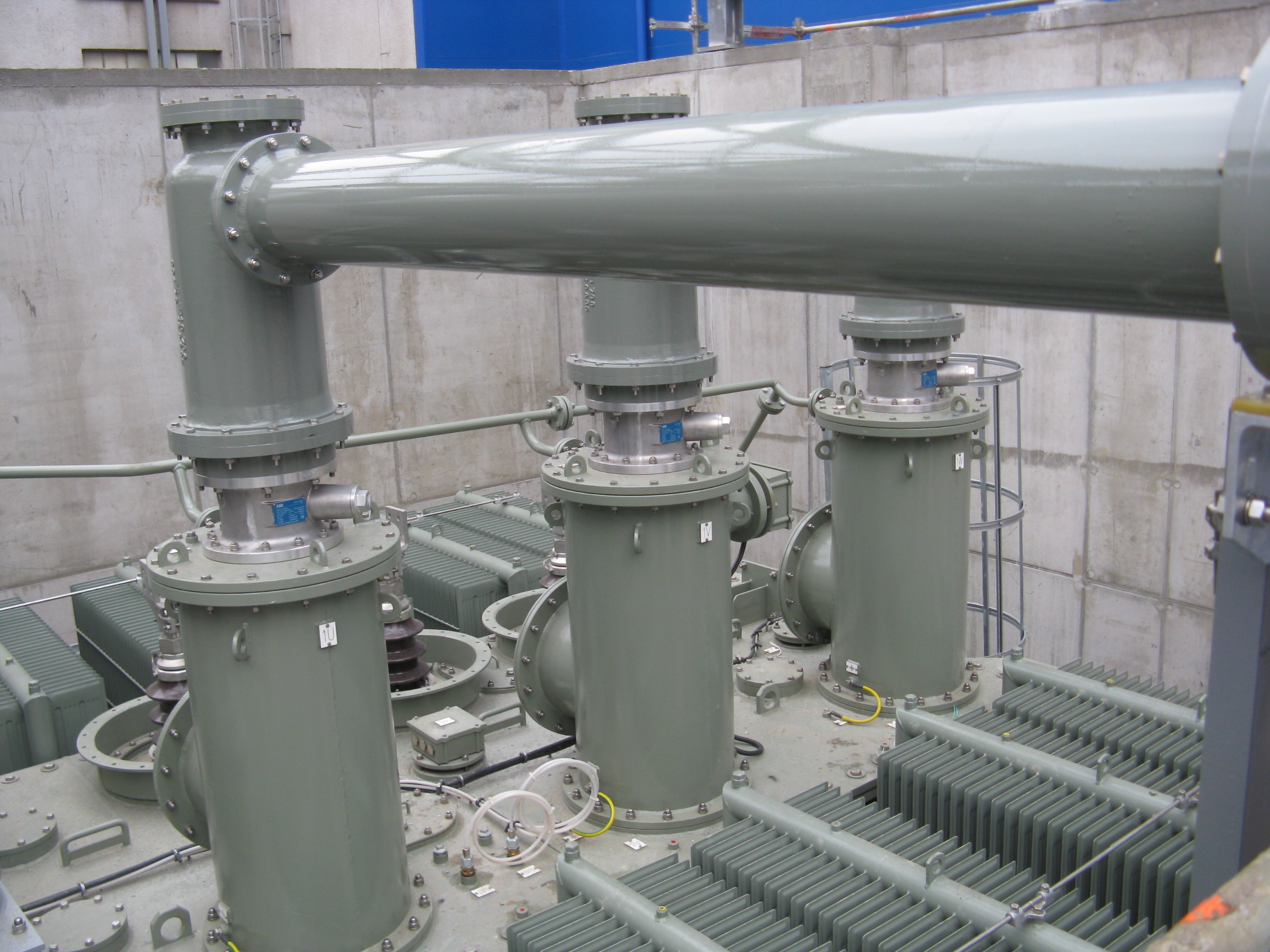

This represents an encapsulated electric device for the rated voltage of 123 kV, with SF6 insulation, which makes possible to connect 110 kV cables to 110 kV power transformers.

Online inquiry Skype
Close

Contact form

Technical information

Rated voltage: 123 kV
Rated current: 630 A
Rated shorttime current 1s (3s): 25 kA
Rated dynamic current: 63 kA
Rated frequency: 50 Hz (60 Hz)
Minimum lifetime (years): 40
Insulation gas: SF6
Rated overpressure of the gas: 0,35 MPa (20°C)

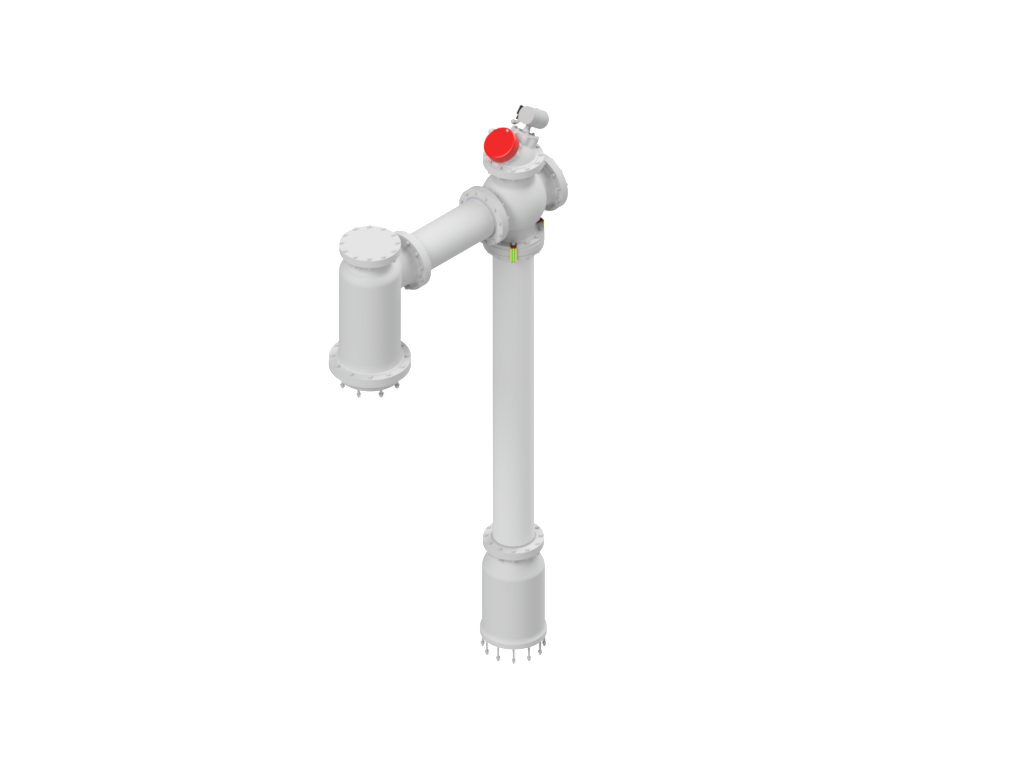

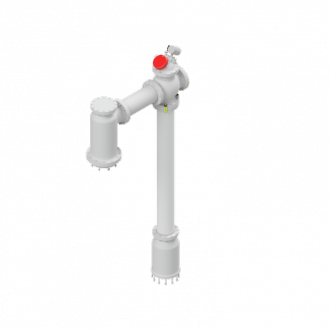

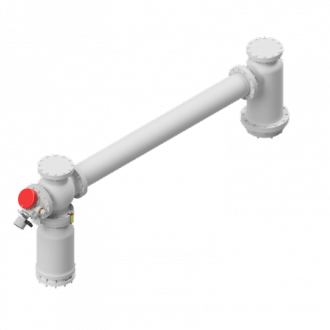

360 Model
