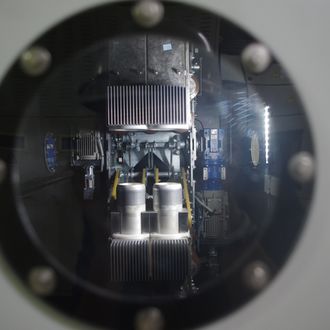

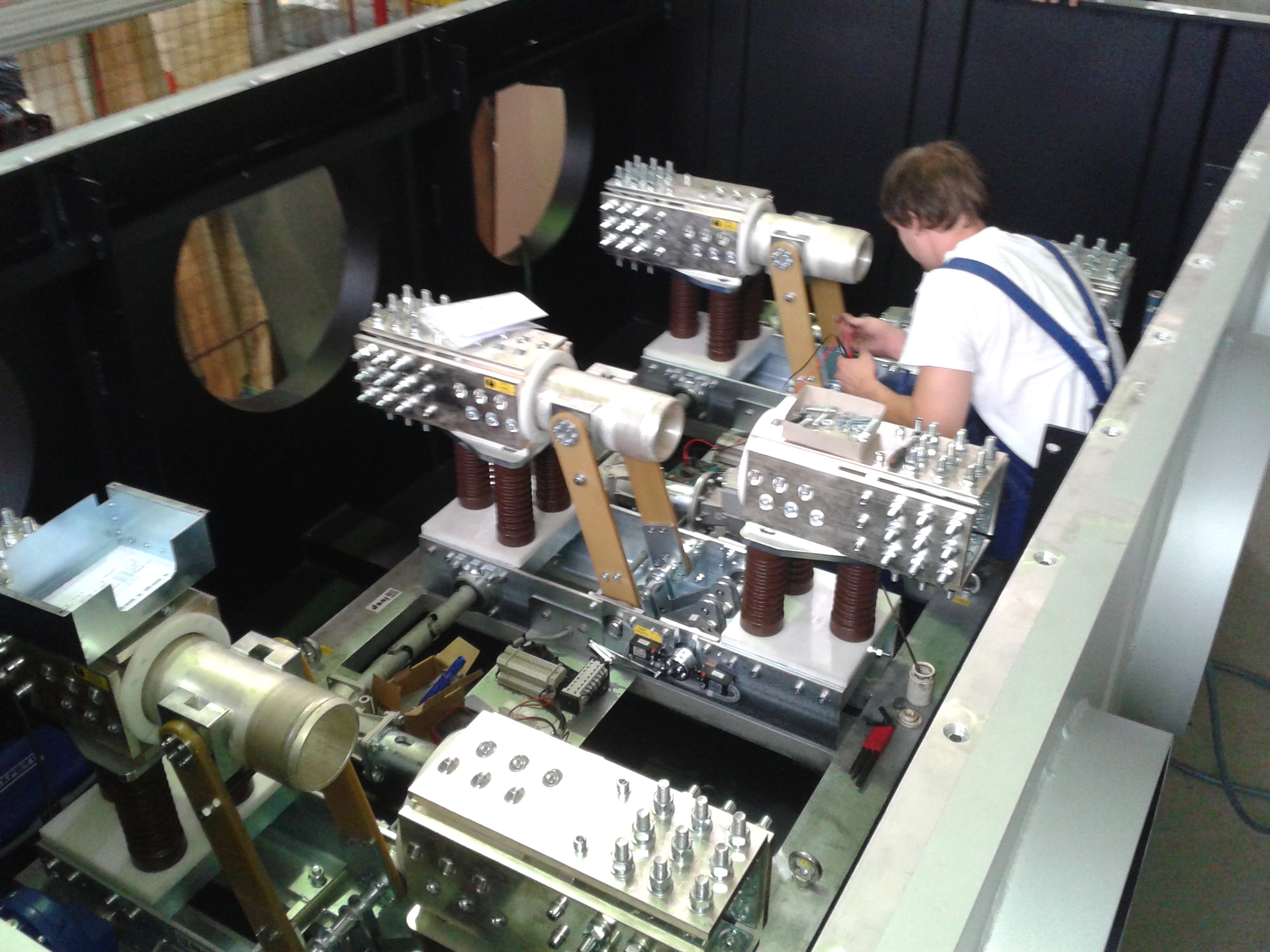

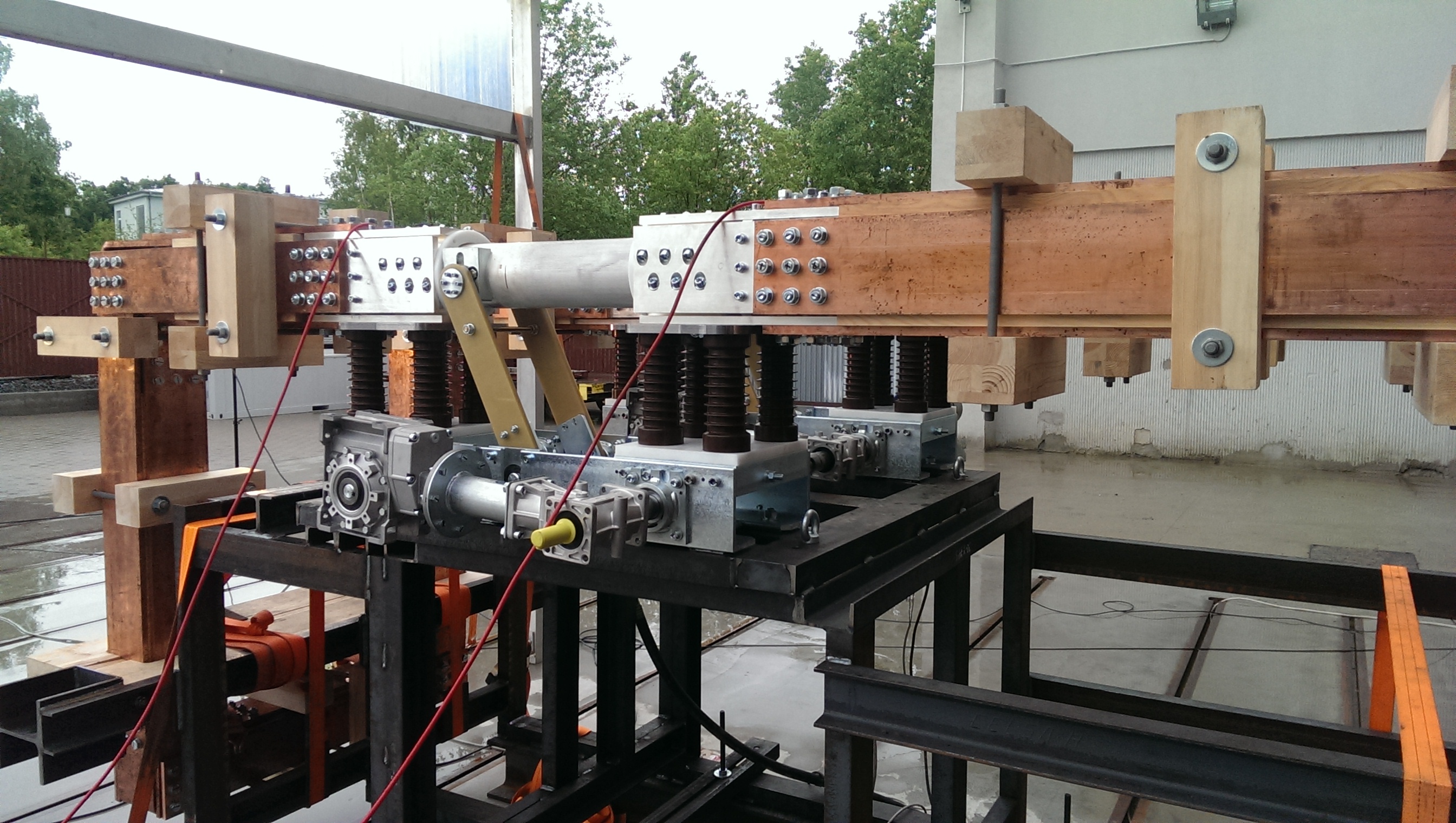

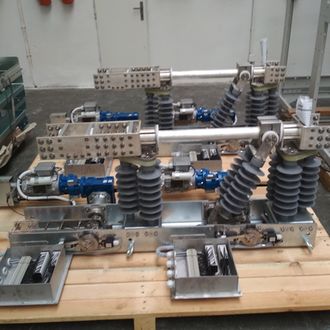

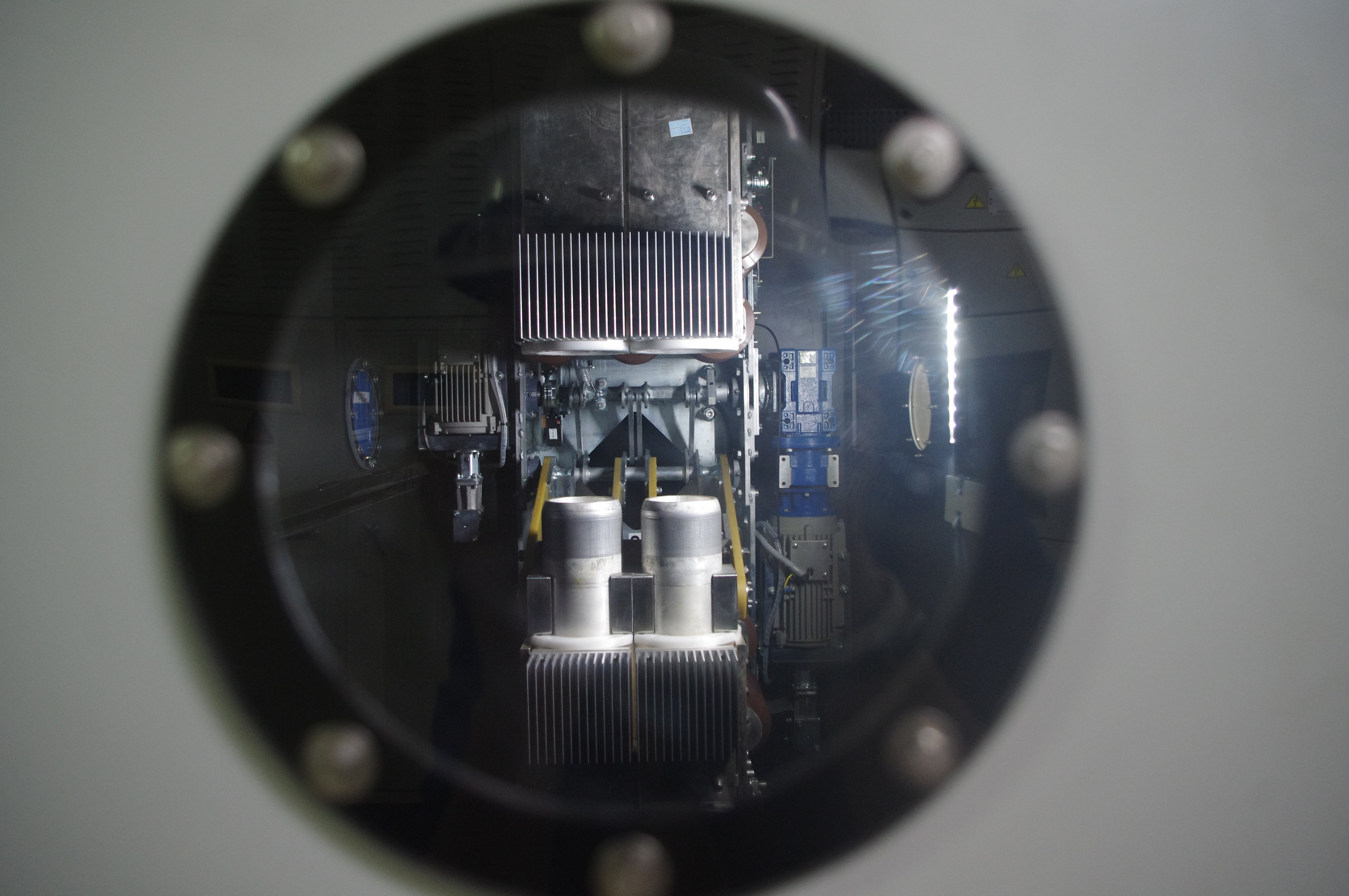

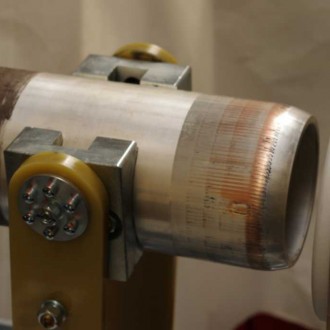

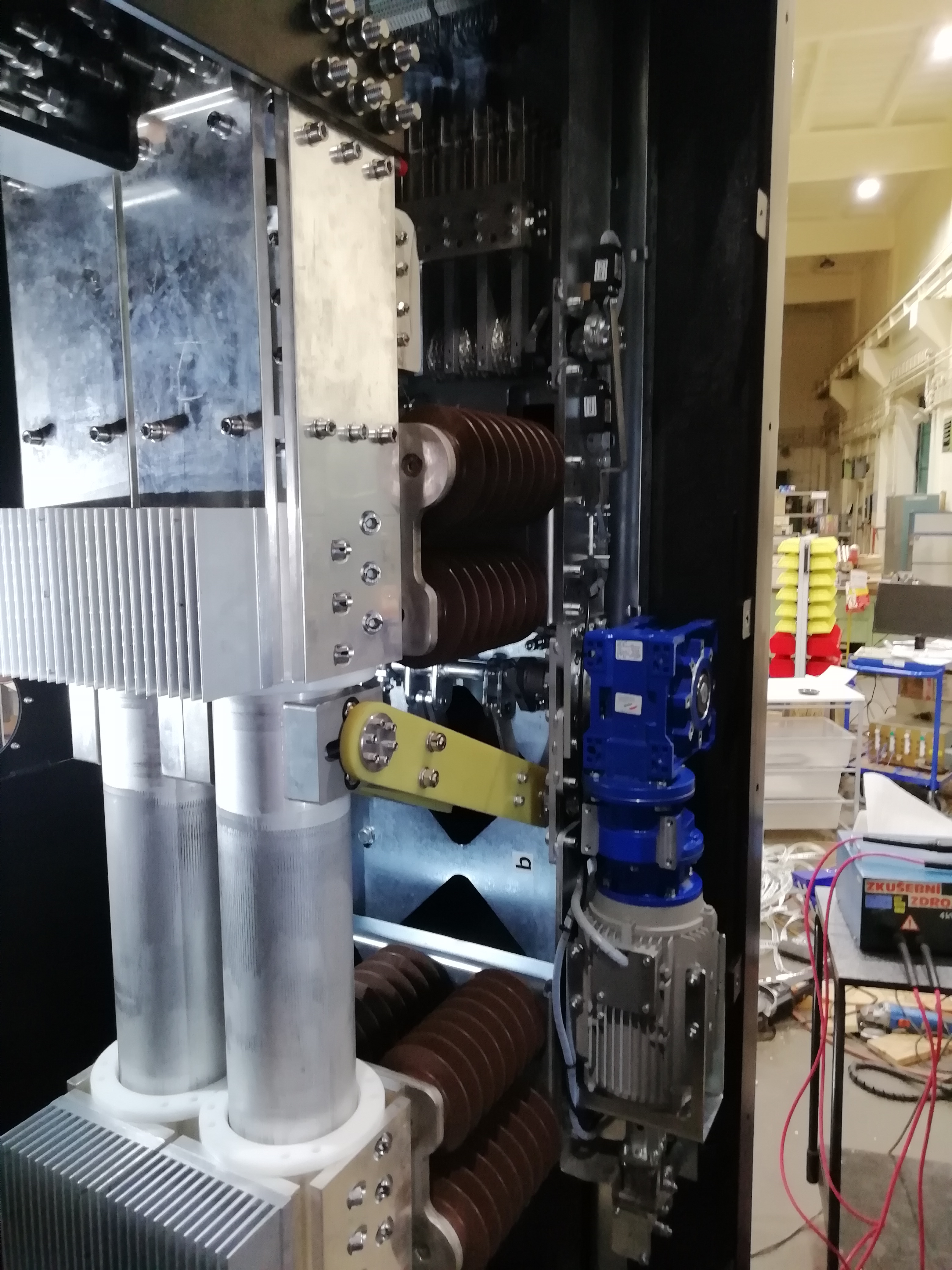

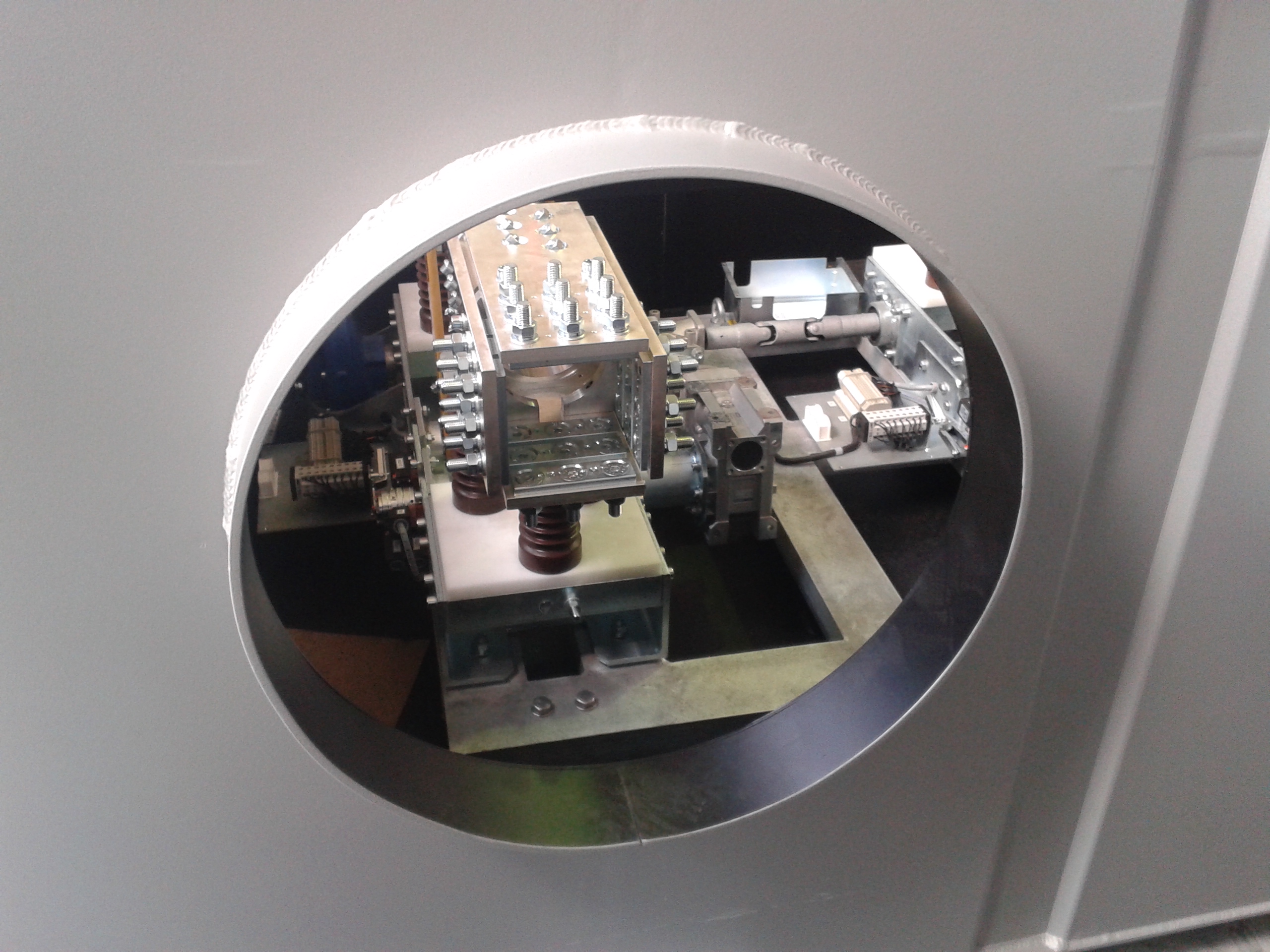

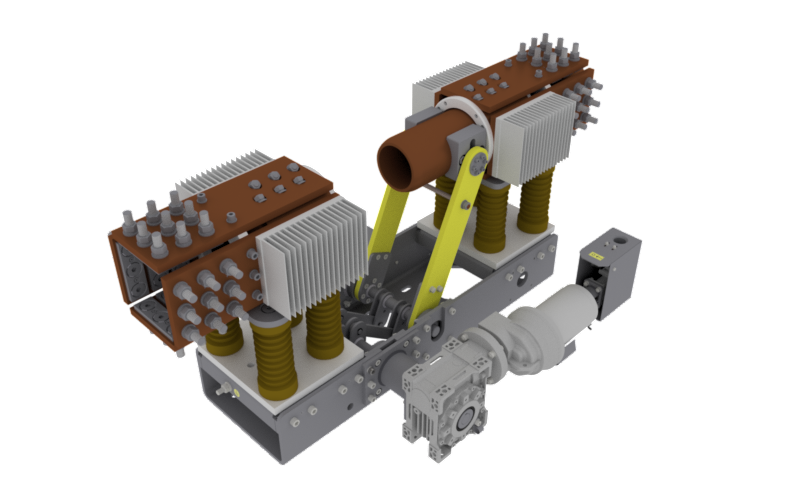

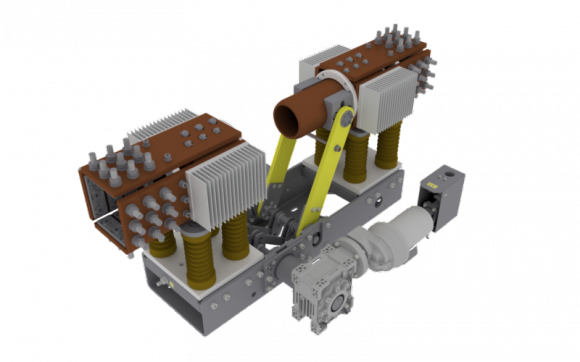

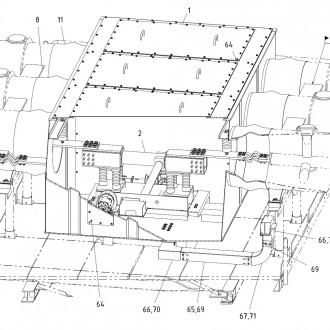

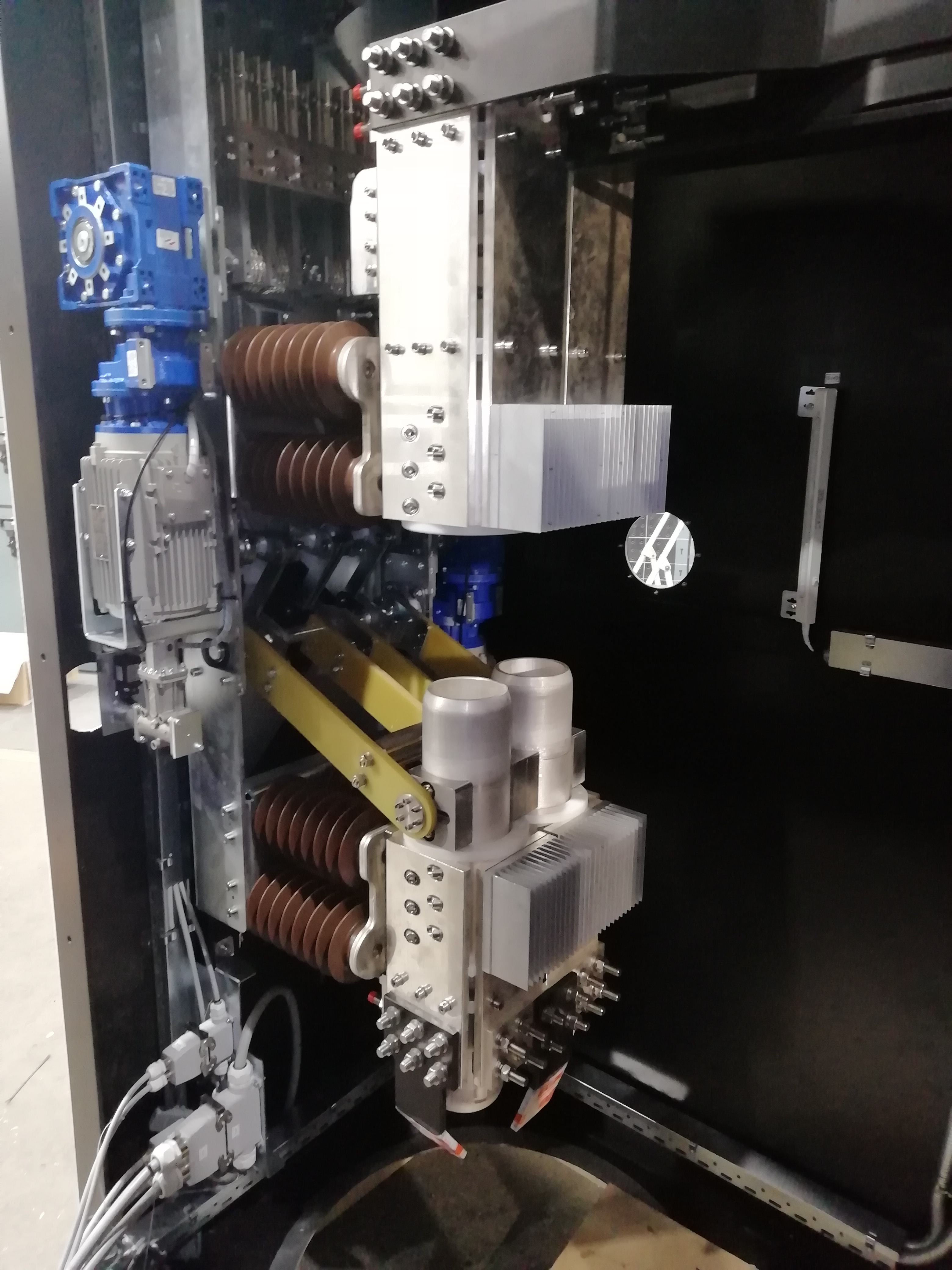

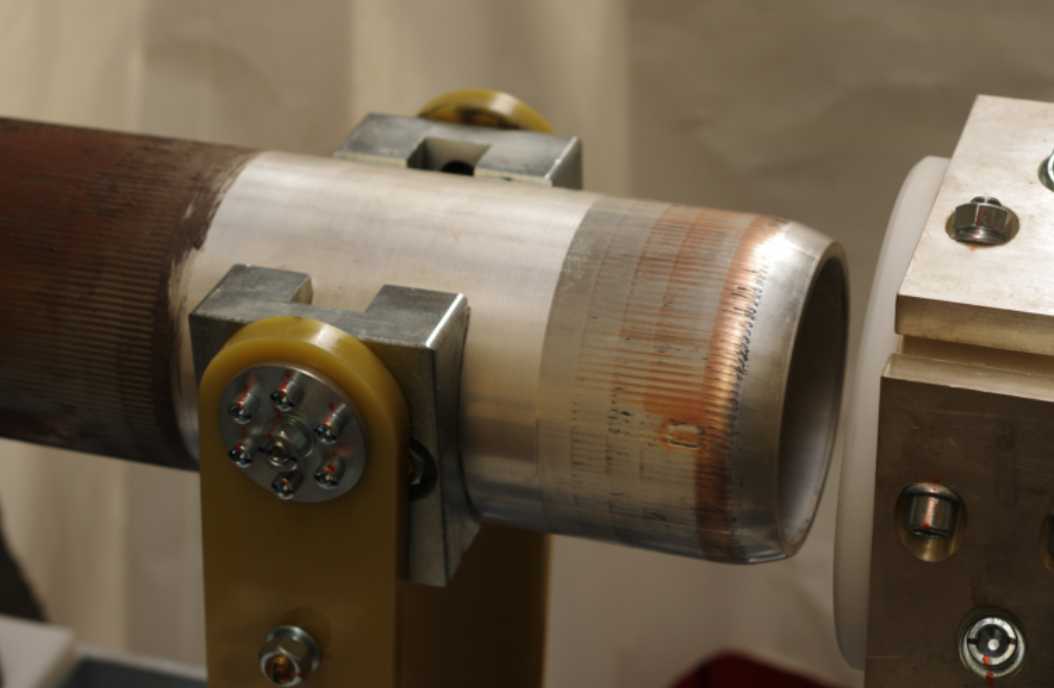

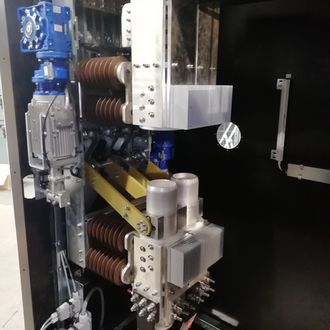

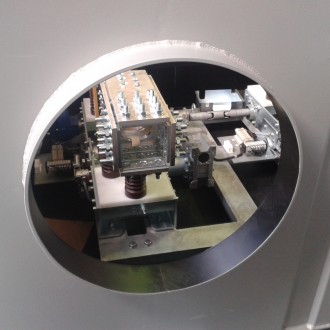

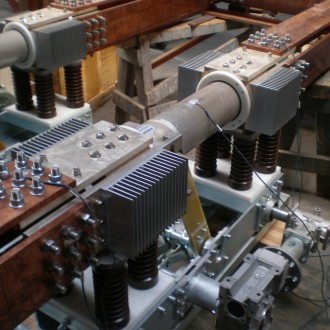

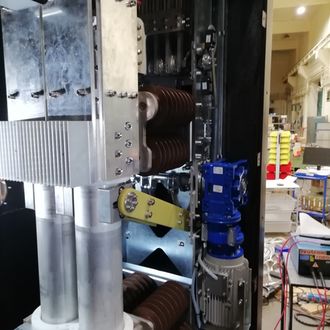

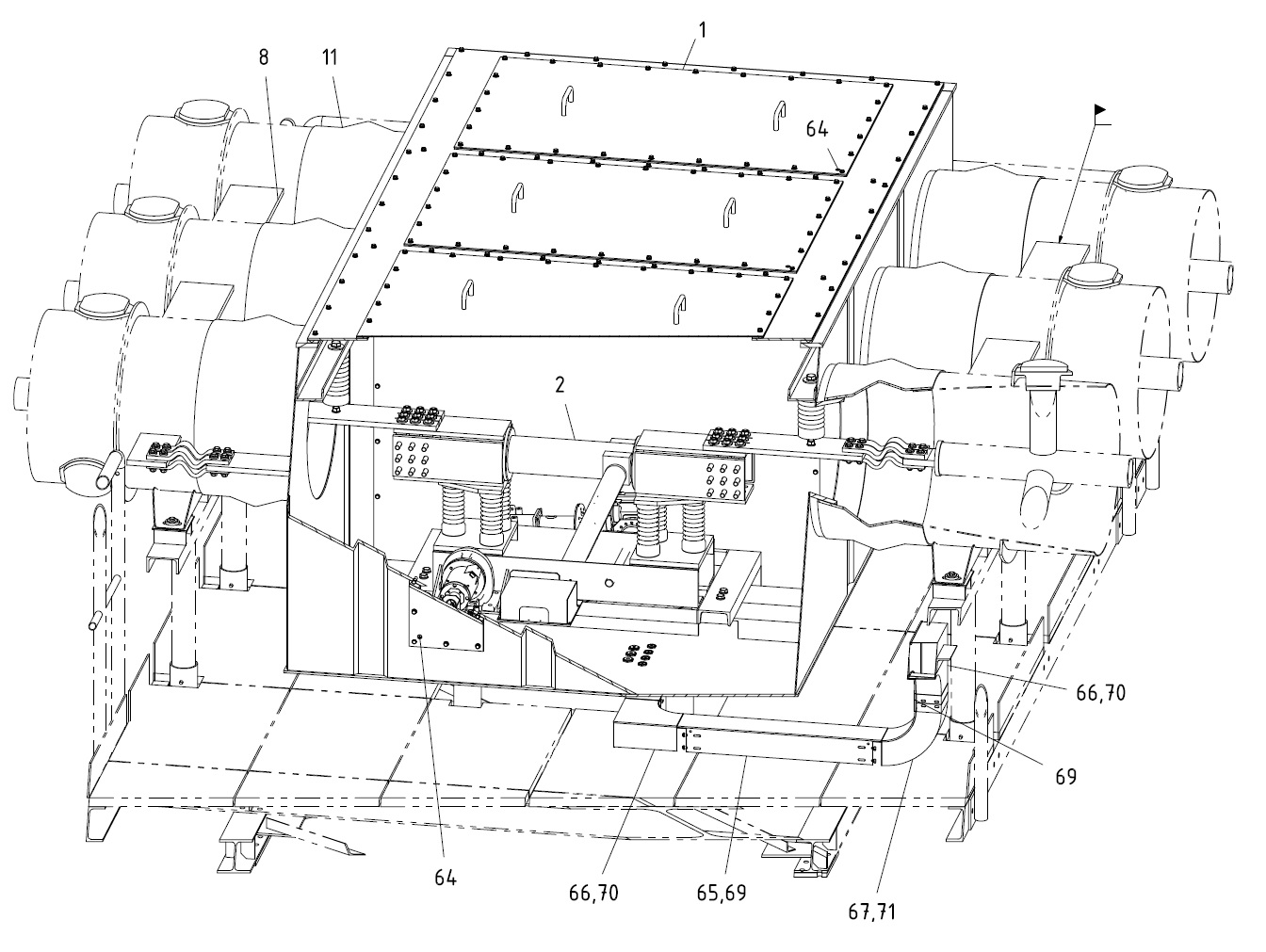

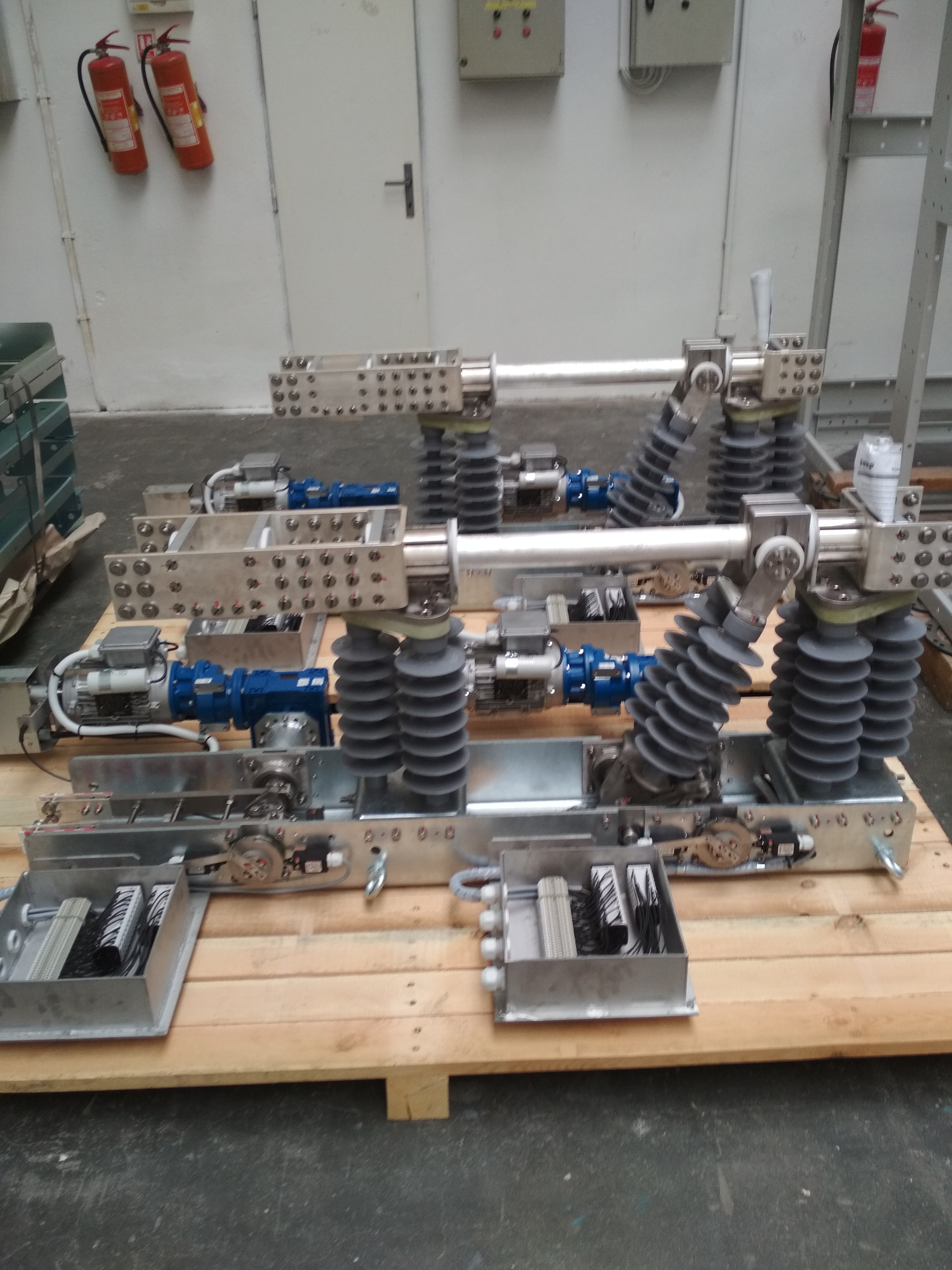

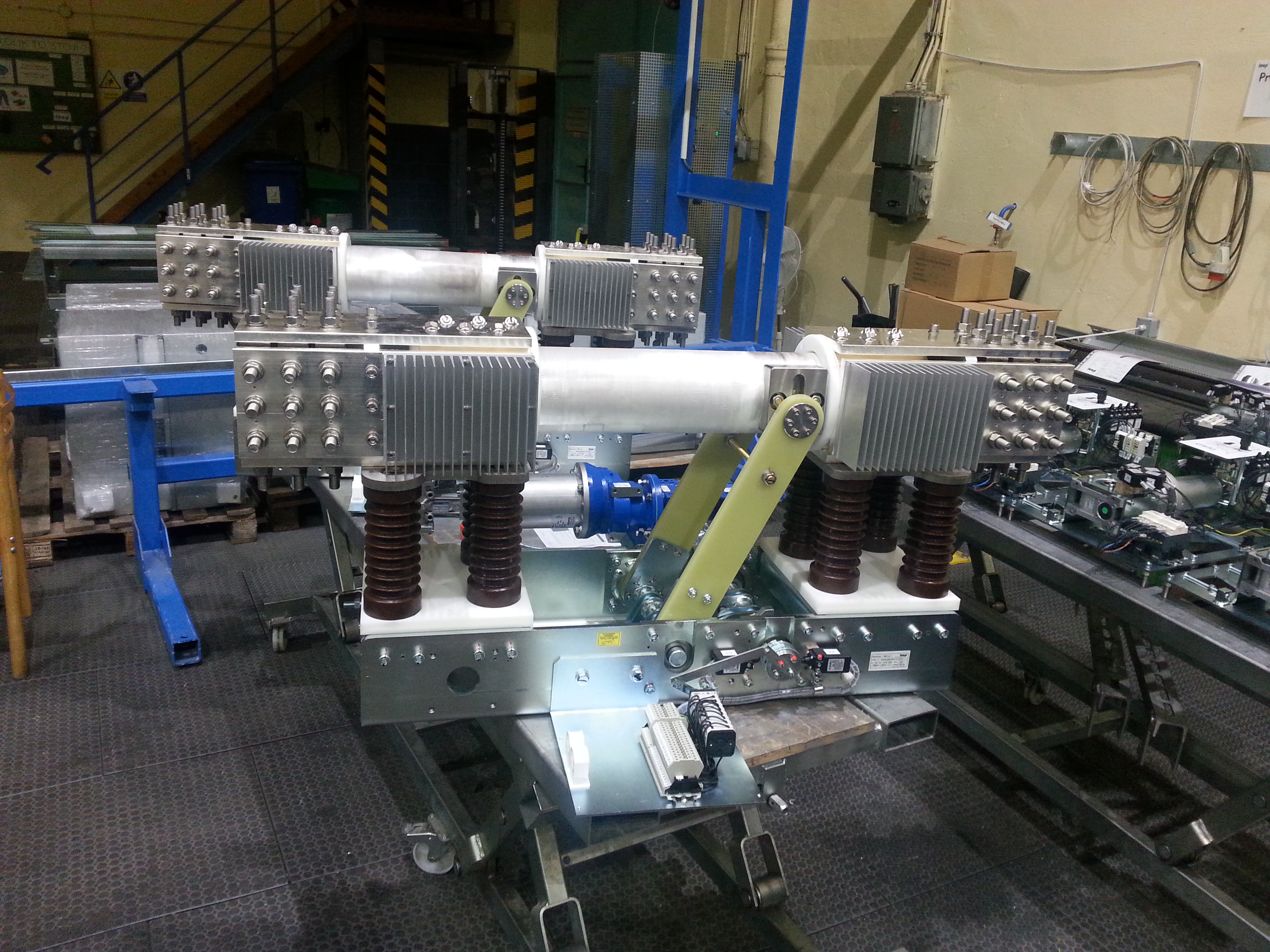

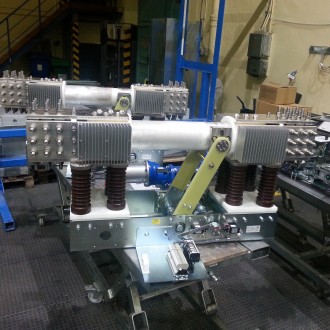

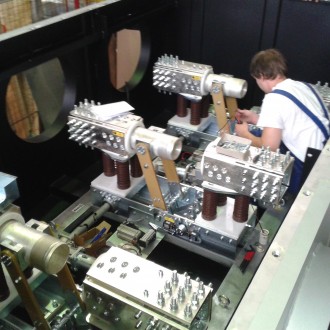

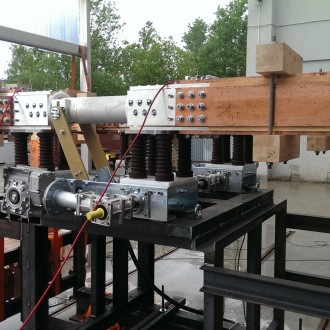

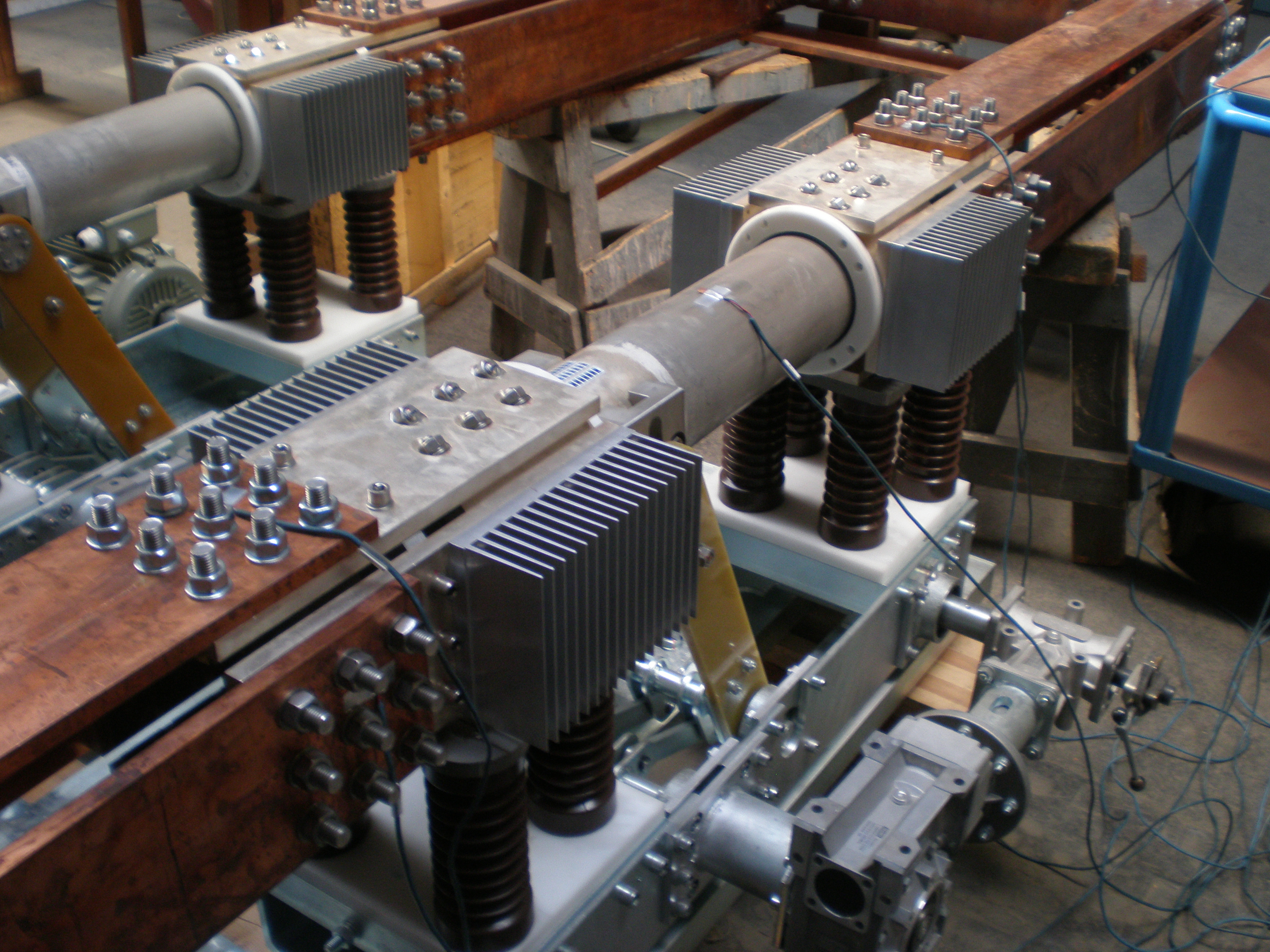

This switching device is Used for the switching of no-load generator circuits in the MV switchgears cabinets or in microwave switching stations. The main Advantages of this devices are high rated current and also top endurance in terms of rated short circuit current.
Rated voltage: 12 – 36 kV
Rated current: up to 22 000 A
Rated shorttime current 1s (3s): 150, 180, 190 kA
Rated dynamic current: 375, 475 kA
Rated frequency: 50 Hz (16 Hz, 60 Hz)
Mechanical endurance: 2000, 5000, 10000 C-O
Minimum lifetime (years): 40
Drive type: Hand drive, Hand drive via gearbox, motor drive
Motor type: 110V DC, 220V DC, 230V AC, 400V AC
Signaling positions:Limit switches per position, placed direct on main device shaft, Auxiliary cam-switch (high switch capacity)
Insulators type: Epoxy resin (upon request)
360 Model
