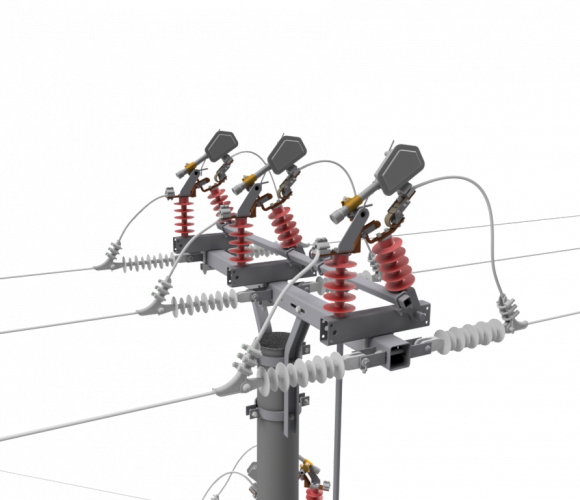

Outdoor load break switches CUB S2

Outdoor load break switches CUB S2

Technical information

Rated voltage: 12 – 38,5 kV
Rated current: 400, 630 A (800A)
Rated shorttime current 1s: 20 kA
Rated dynamic current: 50 kA
Rated frequency: 50 Hz, 60 Hz
Mechanical endurance: 2500 C-O
Minimum lifetime (years): 40
Insulators type: Silicone rubber (upon request)

Download

QR Link

http://manual.ivep.cz/cub s2
